Description
The Zoom G1on FX Processor is the latest multi-effects processor from Zoom, offering 100 different guitar effects alongside a range of versatile functions including looping, mp3 playback, built-in rhythm patterns, and more. The G1on offers a great learning experience for beginner and developing users, whilst interpreting all of the high-end functionality required by more advanced users. The convenient battery-powered and compact design makes the Zoom G1on FX Processor the perfect pedal for any travelling or gigging musician.
Simple and Efficient Interface

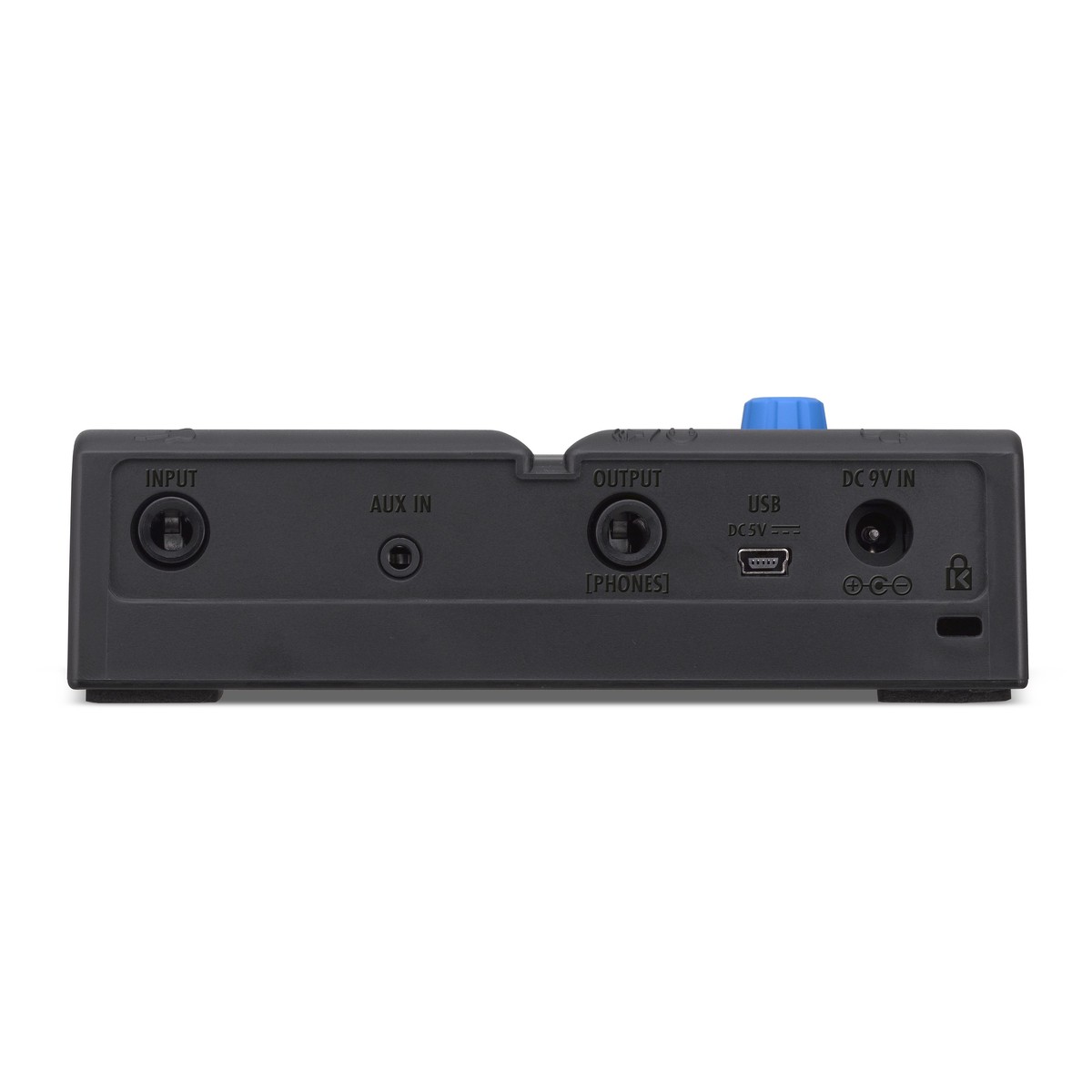

The Zoom G1on FX Processor is a versatile multi-effects processor with 100 built-in guitar effects including everything from amp models to distortion/overdrive. You can use up to 5 effects simultaneously per patch, allowing for virtually endless creative possibilities. The G1on also features an extremely simple and easy to use interface, with autosave, swap and pre-select functions. The G1on offers connection options for your amp, as well as headphones. Simply plug in your headphones to the port on the rear panel to gain access to convenient silent playing and practice. You can also plug in your mp3 player to playback and play along with your tracks.
Develop Your Skills
The Zoom G1on FX Processor offers a range of interactive and interesting ways to learn and progress as a player. Zoom have integrated a 30-second looper which provides a unique and fun way to build up your own tracks, one layer at a time. Easy and simple to use, the looper allows you to construct creative tracks and beats. There are also 68 patterns available for you to play along to, ideal for further practice and development of your skills.
Features
- 100 effects, including distortion, compression, modulation, delay, and reverb
- Up to 5 effects can be used simultaneously, chained together in any order
- 100 memory locations (10 banks of 10) for the storage of user-created patches
- Swap function makes patch organization a breeze
- Auto Save function for automatic saving of all patch parameters
- Pre Select function allows silent patch selection while keeping the current patch operational
- Onboard chromatic tuner supports all standard guitar tunings, including open and drop tunings
- Looper feature for the recording of up to 30 seconds / 64 beats of CD-quality audio with seamless start and end times
- 68 built-in rhythm patterns which can be used in conjunction with the Looper
- Input jack accepts standard mono guitar cable (both active and passive instruments supported)
- Auxiliary input jack for connection of personal music players
- Output jack for connection to amp or headphones
- Backlit LCD with contrast control for easy viewing in low-light environments
- Lightweight and small enough to fit in your gig bag
- Easily integrated into any existing pedal board
- Runs on 4 AA batteries, with alkaline battery life of 20 hours
- USB port for firmware updates
- Optional AC adapter
Specifications
- Effect types: 75 types
- Number of simultaneous effects: 5
- Number of user banks/patches: 10 patches x 10 banks
- Sampling frequency: 44.1kHz
- A/D conversion: 24-bit with 128x oversampling
- D/A conversion: 24-bit with 128x oversampling
- Signal processing: 32-bit floating point & 32-bit fixed point
- Display: LCD
- Input
- Standard monaural phone jack
- Rated input level: -20dBm
- Input impedance (Line): 470k Ω
- Aux In
- Stereo mini jack
- Rated input level: -10dBm
- Input impedance (Line): 1k Ω
- Output
- Standard stereo phone jack
- Maximum output level:
- Line + 2dBm (with output load impedance of 10 kΩ or more)
- Headphones 17mW + 17mW (into 32 Ω load)
- S/N (equivalent input noise): 119dB
- Noise floor (residual noise): -97dBm
- Power:
- AC adapter DC9V (center minus plug), 500 mA (ZOOM AD-16)
- 20 hours of continuous operation using 4 alkaline AA batteries (with LCD backlight off)
- USB: Firmware update
- Dimensions: 154.8mm(D) x 146.0mm(W) x 43.0mm (H)
- Weight: 380g (Not including batteries)
