Description

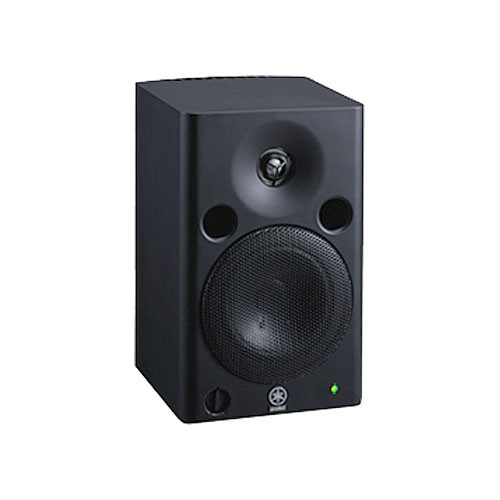

Type: Biamp 2-way Powered Speaker
Crossover Frequency: 2.5 kHz LF: 24 dB/oct, HF: 24 dB/oct
Overall Frequency Response: 50 Hz – 40 kHz (-10 dB)
Maximum Output Level: 101 dB, 1 m on Axis
Dimensions (W x H x D): 7-1/16 x 11 x 8-3/16 inches (179 x 279 x 208 mm)
Weight: 17.41 lbs (7.9 kg)
Magnetic Shielding: Yes
Low frequency driver: 5″ cone
High frequency tweeter: 1.0″ Titanium dome
Enclosure Type: Bass-Reflex
Material: PP
Output Power: LF 40 W THD = 0.02 %, RL = 4 Ohms; HF: 27 W, THD = 0.02 %, RL = 6 Ohm
S/N, IHF-A filter: 94 dB, LEVEL = Max
Input Sensitivity: XLR-3-31+4 dBu, LEVEL = Center -6 dBu, LEVEL = Max ; -10 dBu, LEVEL = Center -20 dBu, LEVEL = Max
Input connector: XLR-3-31 (balanced), 10k Ohms, Phone (unbalanced) 10k Ohms
ControlsÂ
Level: control 31 positions detent type VR
High trim: +1.5/0/-1.5 db at 15 khz
Low trim: +1.5/0/-1.5/-3 db at 60 hz
Power: switch on/off
Indicators: LED Green Power on
Red: Clipping Red
Power Consumption: 60W
