Description

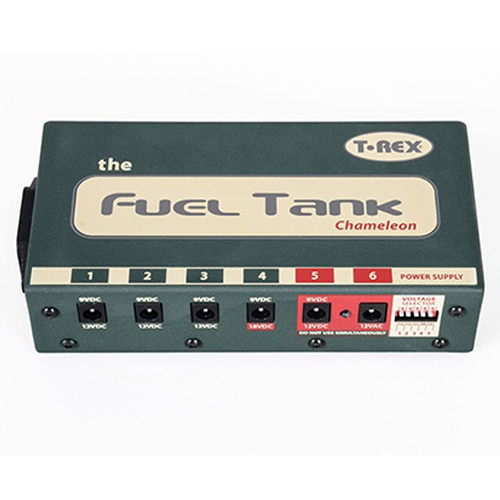

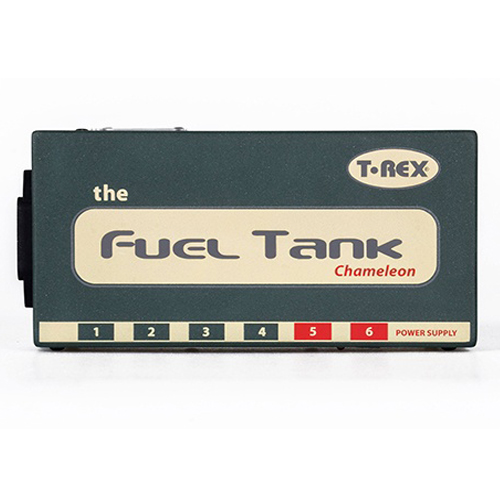

Enter the new Fuel Tank Chameleon, the most versatile power supply T-Rex has ever produced. Built for players with a large number of diverse pedals, Fuel Tank Chameleon offers all the advantages of our other Fuel Tank power supplies, plus an unprecedented 4 separate voltage options.
PART OF THE FUELTANK FAMILY
The Fuel Tank Chameleon is only the latest addition to the T-Rex Fuel Tank family. Our original Fuel Tank Classic features 9V DC, 12V DC and 12V AC outlets in three isolated blocks of 500mA each and is ideal for medium-sized pedal boards. It comes with lots of single patch cables and a multiple link cable. The Fuel Tank “Juicy Lucy” powers 5 12V pedals and also offers great extras, like multiple unit linking. The baby of the family – Fuel Tank Junior – is a good choice for a small number of 9V pedals. It offers both current doubling to 240 mA and voltage doubling to 18V.
MISCELLANEOUS
Placement; as far away from pedals as possible (preferable at least last in the chain close to Analog/drive pedals) in order to reduce noise interference in the signal chain.
FEATURES
- 5 outputs each with 300 mA (= 1500 mA)
- Output 5/6 choice of either 9/12v DC or 12v AC
- Choice of 9V DC, 12V DC, 12V AC or 18VDC -150mA
- Noise-cancelling galvanic isolated outputs
- Traditional EI Transformer
- Several different voltage types served
- Current doubler = the possibility of as much as 600 mA
- Switchable 115V or 230V
- Compact, rugged, road-ready design
TECH SPECS
| Connections | Chameleon has 6 isolated outpurts: All 9V and 12V outlets delivers 300mA. When outlet 4 is switched to 18V DC it delivers 150mA All outlets are centre negative |
|---|---|

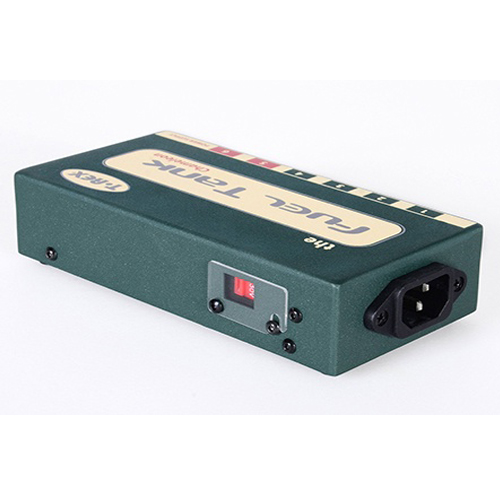

| Input mains voltage | Switchable 115V or 230V mains |
| Cables | 1x Red 50cm AC cable with 2,1mm – 2,5mm connectors for use on the 12V AC outlet 1x Blue 50cm AC cable with 2,5mm – 2,5mm connectors for use on the 12V AC outlet Black 50cm DC cable with 2,1mm DC – 3,5mm mini-jack connectors Black link DC cable with five 2,1mm – 2,1mm connectors Black 20cm DC cable with 2,1mm – 2,1mm connector Black 50cm DC cable with 2,1mm – 2,1mm connector Black 75cm DC cable with 2,1mm – 2,1mm connector Black 100cm DC cable with 2,1mm – 2,1mm connector Mains power cable |
| Pedal size incl. knobs (W x H x D) | 160 x 38 x 80 mm / 6,3 x 1,5 x 3,2 inch |
| Weight excl. packaging | 0,790 kg / 27,87 oz |
