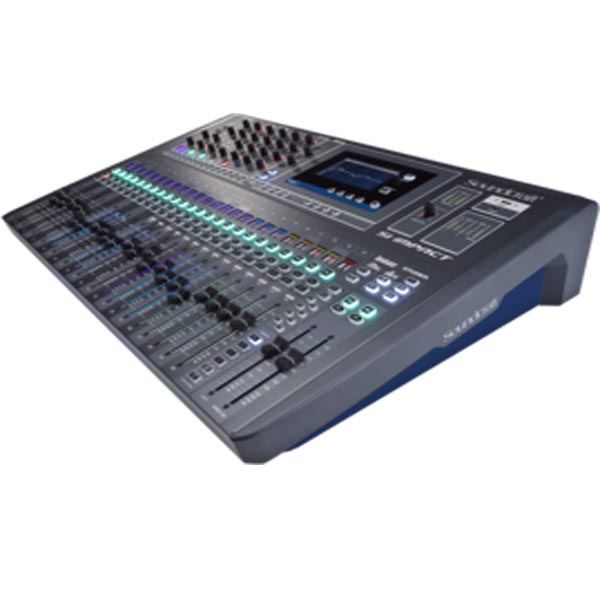

Soundcraft Si Impact Console

Description

Euphonycart presents Soundcraft Si Impact Console. Drawing on over 40 years experience in live sound mixing, Si Impact brings the latest digital mix innovations together with the unrivalled sound quality of Soundcraft. Designed to be as simple as an analog mixer, but offer radical workflow enhancements such as the unique FaderGlow™ system, massive DSP power, and a pristine 32-in/32-out USB audio interface, Si Impact delivers digital live sound mixing and recording for those who refuse to compromise on audio quality.

Si Impact. Innovative digital mixing with uncompromised audio quality

Drawing on over 40 years experience in live sound mixing, Si Impact brings the latest digital mix innovations together with the unrivalled sound quality of Soundcraft. Designed to be as simple as an analog mixer, but offer radical workflow enhancements such as the unique FaderGlow™ system, massive DSP power, and a pristine 32-in/32-out USB audio interface, Si Impact delivers digital live sound mixing and recording for those who refuse to compromise on audio quality.

Features

The legendary British sound
From humble beginnings in London more than 40 years ago and still designed and engineered in the UK, Soundcraft defined the term ‘British sound’ in live sound mixing consoles.

Soundcraft Co-Founder Graham Blythe’s acclaimed microphone preamps and ‘British’ equaliser ensures the Si Impact proudly carries Soundcraft’s signature sound today.

Going beyond analogue control
Combining One-Knob-One-Function control with unique features like FaderGlow™, Soundcraft combines analogue workflow with digital flexibility. FaderGlow™ illuminates the fader track in different colours to provide at-a-glance status information on precisely what the fader is controlling – aux sends, FX sends or even the graphic EQ that’s available on every bus.

Each fader channel also features a clear multi-color LCD display – giving ‘at a glance’ information on levels and offering a fully customisable’scribble strip’ to name your channels.

World-class effects & dynamics
Si Impact isn’t just packed with DSP power. It’s packed with DSP power from the acknowledged experts in digital FX. That means studio-grade reverbs, delays and modulations from Lexicon, legendary dbx dynamics and industry-standard BSS Graphic Equalisers.

Put your I/O where you need it
With built-in connectivity for an optional Soundcraft Stagebox, Si Impact lets you put your I/O where you need it.

Set up your Stagebox by the band for live sound applications, or position it in the live room for studio recording all via a single piece of Cat 5 cable.

Pristine audio direct to your DAW
Si Impact makes recording quick and easy with superb quality, built-in 32-in/32-out USB recording and playback.

A single connection to your PC or MAC and you’re ready to make multi-track recordings direct to any digital audio workstation. Send up to 32 inputs and 32 outputs to and from your DAW for recording and playback.

Remote mixing with your iPad®
The mix power of Si Impact is accessible from anywhere in the venue, via the Soundcraft remote iPad® app.

Mix FOH from the audience location, mix monitors from the stage, or allow musicians to set their own monitor mix from multiple iPad® devices.

SPECIFICATIONS

Up to 80 channels to mix
32 Mic Inputs
8 XLR/1/4″ Combi-jacks for line inputs and instruments
40 DSP input channels (32 mono inputs and 4 stereo channels/returns)
31 Output busses (All with full DSP processing and GEQ)
4-band Fully Parametric EQ on each channel and bus
8 VCAs + 8 Mute groups
26 motorised faders (24 input + LR/Mono)
4 fully customisable Fader Layers
Built-in Stagebox Connectivity
5″ touchscreen display
Multi-Colour LCD Channel Displays on each input fader
4 studio-grade Lexicon Effects engines and dedicated FX busses
BSS Graphic Equalisers on every bus
20 sub-group / aux busses
4 mono/stereo matrix busses
32×32 USB audio interface for multi-track recording and playback *
Increase I/O capabilities with option cards and stageboxes:
Use included MADI option card and Soundcraft Mini Stagebox 32i or 16i for more microphone preamps, inputs and channels to mix
Add 2nd MADI option card and two Soundcraft Mini Stagebox 32i or 16i for up to 96 microphone preamps, 136 total inputs and 80 channels to mix.
Add Dante option card for 64 channels of Dante to mix
Additional option cards available: AVIOM A-Net, CobraNet, AES/EBU, BLU Link, more
Additional Soundcraft stageboxes available: Mini Stagebox 32R, Mini Stagebox 16R, Compact Stagebox, and Vi Stagebox
* USB Interface Compatibility:PC: Supports Windows 7, Windows 8 and Windows 10.
Mac: Supports Mac OS 10.7.x Lion through 10.11.x El Capitan
