Description
- SPECIFICATIONS

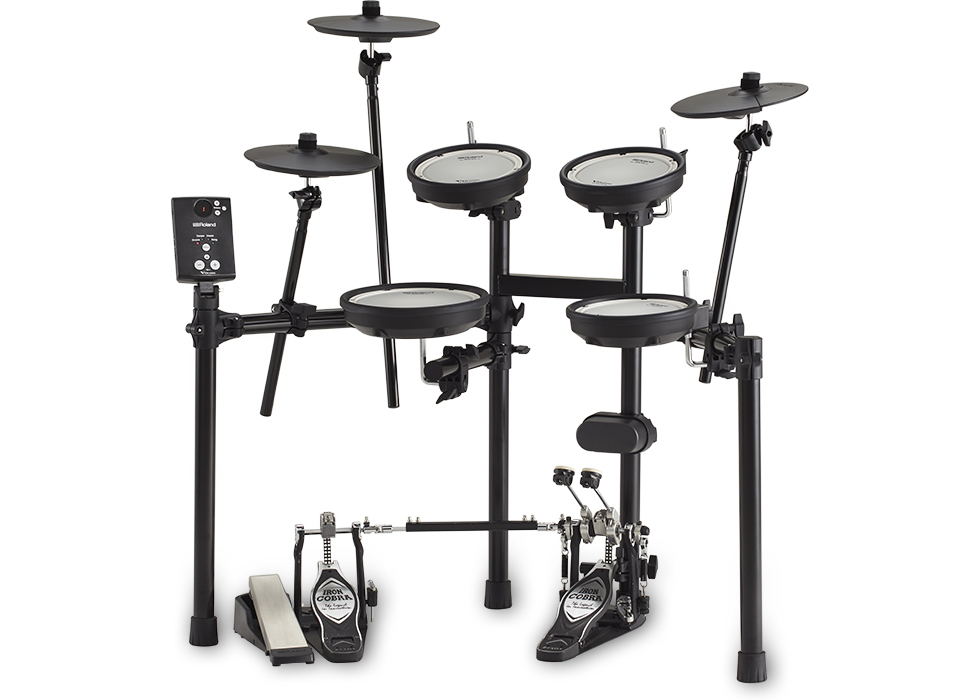

- Kit configuration (*1)
- Kick, Snare, Hi-hat, Hi-hat control pedal, Tom x 3, Crash, Ride, Drum stand
Kick: Compatible for using a double kick pedal
Snare (PDX-8): 8 inches, double mesh head (2-ply), dual trigger (head, rim)
Hi-hat (CY-5): 10 inches (fixed-type)
Hi-hat control pedal: Detectable for half-open stroke
Tom (PDX-6A) x 3: 6 inches, double mesh head (2-ply), single trigger (Head) *2
Crash (CY-5): 10 inches, dual trigger (bow, edge)
Ride (CY-5): 10 inches, dual trigger (bow, edge)
Drum stand: Four-post type rack stand - Drum kits
- 15
- Coach functions (10 modes)
- Time check (easy)
Time check (hard)
Change-up
Auto up/down
Quiet count
Tempo check (easy)
Tempo check (hard)
Stroke balance
Timer
Recording - Songs
- 15
- Metronome
- Tempo (40–260)
Rhythm type (5 types)
Sounds (8 types)
Volume (10 levels) - Display
- 7 segments, 3 characters (LED)
- Connectors
- OUTPUT/PHONES jack: Stereo miniature phone type
MIX IN jack: Stereo miniature phone type
USB COMPUTER port: USB B type
TRIGGER INPUT connector: DB-25 type (Kick, Snare, Tom 1, Tom 2, Tom 3, Hi-hat, Crash 1, Crash 2, Ride, Hi-hat control) - Interface
- USB MIDI (transmitting only)
- Power supply
- AC adaptor
- Current draw
- 150 mA
- Accessories
- Setup Guide
Owner’s Manual
Leaflet “USING THE UNIT SAFELY”
AC adaptor
Special connection cable - Options (sold separately)
- Additional crash cymbal (Crash2): CY-5, MDY series *3
Kick: KD-9, KD-10, KT-9, KT-10
Personal drum monitor: PM series
V-Drums mat: TDM series - SIZE (INCLUDING SOUND MODULE, KICK PAD, KICK PEDAL AND DRUM THRONE)
- Width
- 1,200 mm
47-1/4 inches - Depth
- 1,100 mm
43-5/16 inches - Height
- 1,200 mm
47-1/4 inches - SIZE AND WEIGHT
- Weight
- 17.8 kg
39 lbs. 4 oz. - *1 Kick pedal and drum throne are not included.
- *2 Specially designed for the TD-1 Double Mesh Kit, unsupported for using a rim-shot.
- *3 MDY-12 is additionally required for mounting a CY-5 on the stand.
