Description
- Kit Configuration

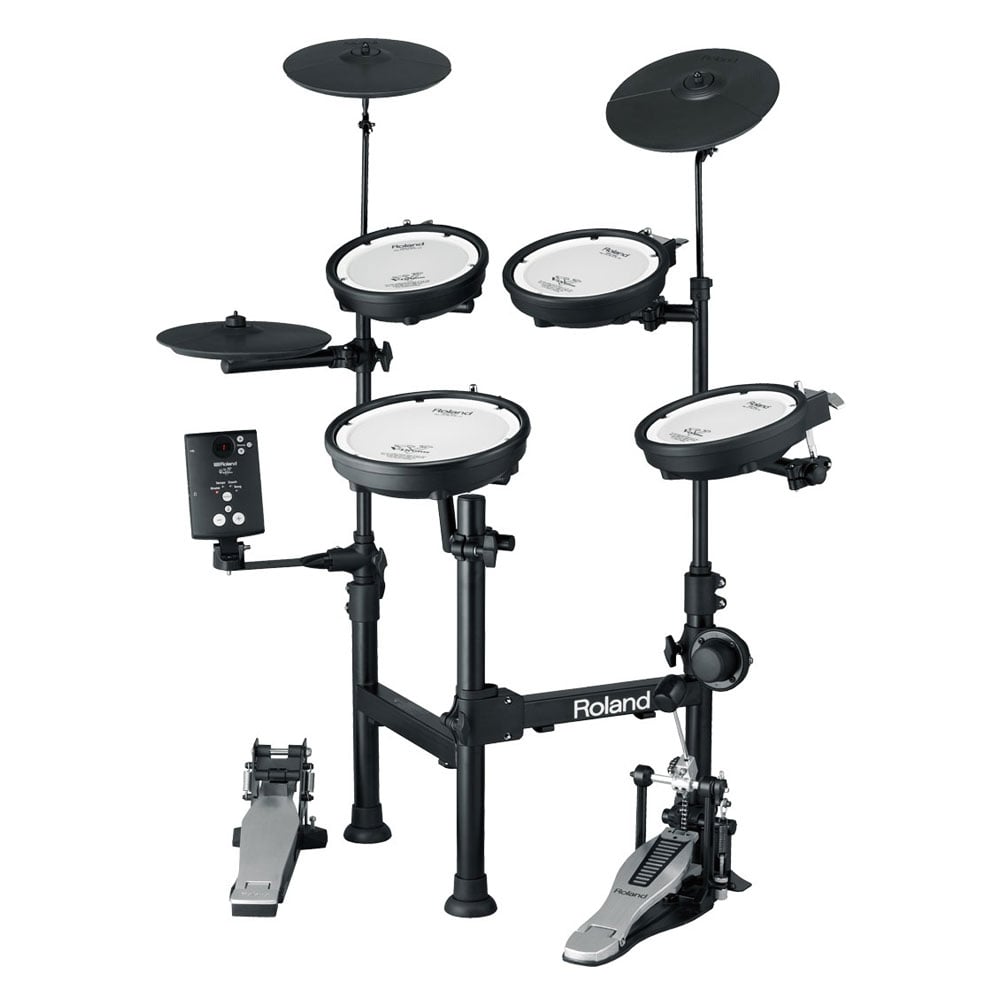

- Kick Pad, Snare (PDX-8), Hi-Hat (CY-5), Hi-Hat Pedal (FD-9), Tom x 3 (PDX-6), Crash (CY-5), Ride (CY-5), Drum Stand (MDS-TDKP1)
* Kick pedal and drum throne are not included. - Drum Kits
- 15
- Coach Functions
- 10:
Time Check (Easy)
Time Check (Hard)
Change-up
Auto Up/Down
Quiet Count
Tempo Check (Easy)
Tempo Check (Hard)
Stroke Balance
Timer
Recording - Songs
- 15
- Metronome
- Tempo (40–260)
Rhythm Type (5 types)
Sounds (8 types)
Volume (10 levels) - Display
- 7 segments, 3 characters (LED)
- Connectors
- OUTPUT/PHONES jack: Stereo miniature phone type
MIX IN jack: Stereo miniature phone type
USB COMPUTER port: USB B type
TRIGGER INPUT connector: DB-25 type (Kick, Snare, Tom 1, Tom 2, Tom 3, Hi-hat, Crash 1, Ride, Hi-hat control) - Interface
- USB MIDI (Transmitting only)
- Power Supply
- AC adaptor
- Current Draw
- 150 mA
- Accessories
- Setup Guide
Owner’s Manual
Leaflet “USING THE UNIT SAFELY”
AC adaptor
Special connection cable
Drum sound module holder
Pad mount x 4 - Options (sold separately)
- Kick: KD-9, KT-9, KT-10
Personal Drum Monitor: PM-03, PM-10
V-Drums accessory package: DAP-3X
V-Drums mat: TDM series - SIZE (INCLUDING KICK PEDAL, CYMBALS, AND DRUM THRONE)
- Width
- 1,000 mm
39-3/8 inches - Depth
- 1,200 mm
47-1/4 inches - Height
- 1,250 mm
49-1/4 inches - SIZE (FOLDED)
- Width
- 415 mm
16-3/8 inches - Depth
- 610 mm
24-1/16 inches - Height
- 750 mm
29-1/16 inches - WEIGHT (EXCLUDING AC ADAPTOR)
- Weight
- 14.7 kg
32 lbs. 7 oz.
