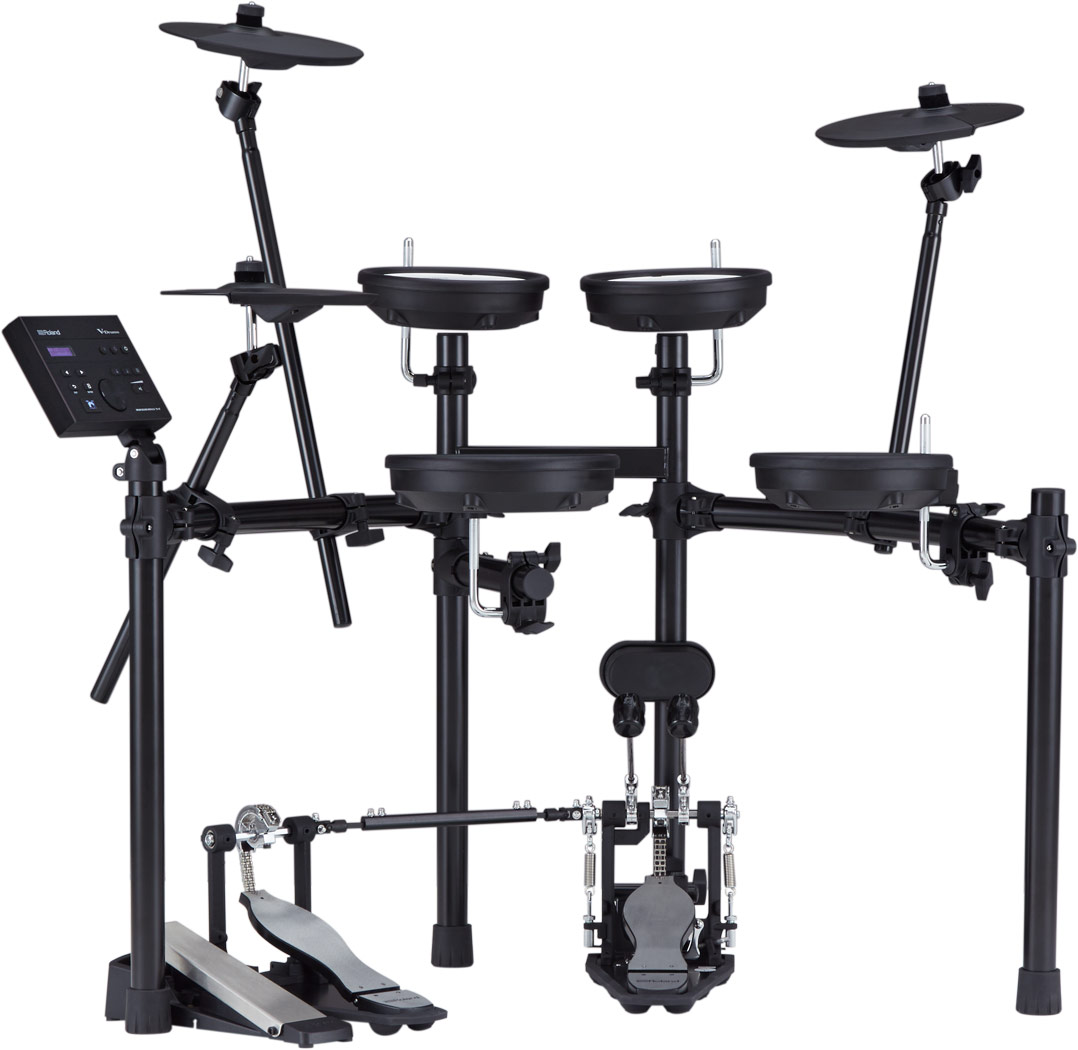

Compact and keenly priced—but with the professional tone, feel, and features to improve your drumming fast—the TD-07DMK is the entry point to the V-Drums TD-07 series. While the pads are smaller than the kits higher up the range, you’ll appreciate the satisfying feel from the PDX-8 snare and three PDX-6A toms, all featuring Roland’s ultra-quiet, double-ply mesh heads. The compact CY-5 crash and ride cymbals let you play with expression where space is tight, while a stand-mounted kick pad helps create the TD-07 range’s smallest footprint to make the perfect home kit.
Despite the compact size, you can still think big thanks to creative features that stretch beyond any acoustic kit. Call up authentic drum kits covering a range of styles and genres, and use deep tone editing tools to customize sounds just how you like. There’s also an onboard Coach mode to help you learn, Bluetooth® connectivity so you can play along with music streamed from your phone, tablet or computer, and USB to connect with computer-based recording software.
Kick: KD-2
Snare: PDX-8
Hi-hat: CY-5
Hi-hat control pedal: Half-open stroke detectable
Tom: PDX-6A x 3 *2
Crash: CY-5
Ride: CY-5
Drum stand: Four-post type rack stand
Drum kits
50 (Preset: over 20)
Instruments
143
Effect Types
Pad Equalizer: each pad
Overhead Mic Simulator
Room
Multi-Effects: 1 system, 30 types
Coach functions (5 modes)
Time check (easy)
Time check (hard)
Quiet count
Auto up/down
Change-up
Metronome
Tempo (20–260)
Rhythm type (5 types)
Sounds (15 types)
Bluetooth
Supported standards: Bluetooth Ver 4.2
Supported profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
Codec: SBC (Support to the content protection of the SCMS-T method)
Display
16 characters x 2 lines LCD (with backlight)
Connectors
OUTPUT/PHONES jack: Stereo miniature phone type
MIX IN jack: Stereo miniature phone type
USB COMPUTER port: USB B type
TRIGGER INPUT connector: DB-25 type (Kick, Snare, Tom 1, Tom 2, Tom 3, Hi-hat, Crash 1, Crash 2, Ride, Hi-hat control)
USB COMPUTER
Speed: Hi-speed USB
Driver mode: Generic, Vender
Protocol: USB MIDI, USB Audio *3
Setup Guide
Owner’s Manual
Leaflet “USING THE UNIT SAFELY”
AC adaptor
Special connection cable
Options (sold separately)
Additional crash cymbal (Crash2): CY-5, MDY-Standard *4
Personal drum monitor: PM series
V-Drums accessory package: DAP-3X
V-Drums mat: TDM series
Noise eater: NE series
SIZE & WEIGHT
Dimensions
1,200 (W) x 1,100 (D) x 1,200 (H) mm
47-1/4 (W) x 43-5/16 (D) x 47-1/4 (H) inches(including sound module, kick pad, kick pedal and drum throne)
Weight
18.0 kg / 39 lbs 11 oz
*1 Kick pedal and drum throne are not included.
*2 Rim-shot is not supported.
*3 In order to use USB audio, switch to vendor mode and use the vendor driver.
*4 MDY-Standard is additionally required for mounting a CY-5 on the stand.
