Description
Features:

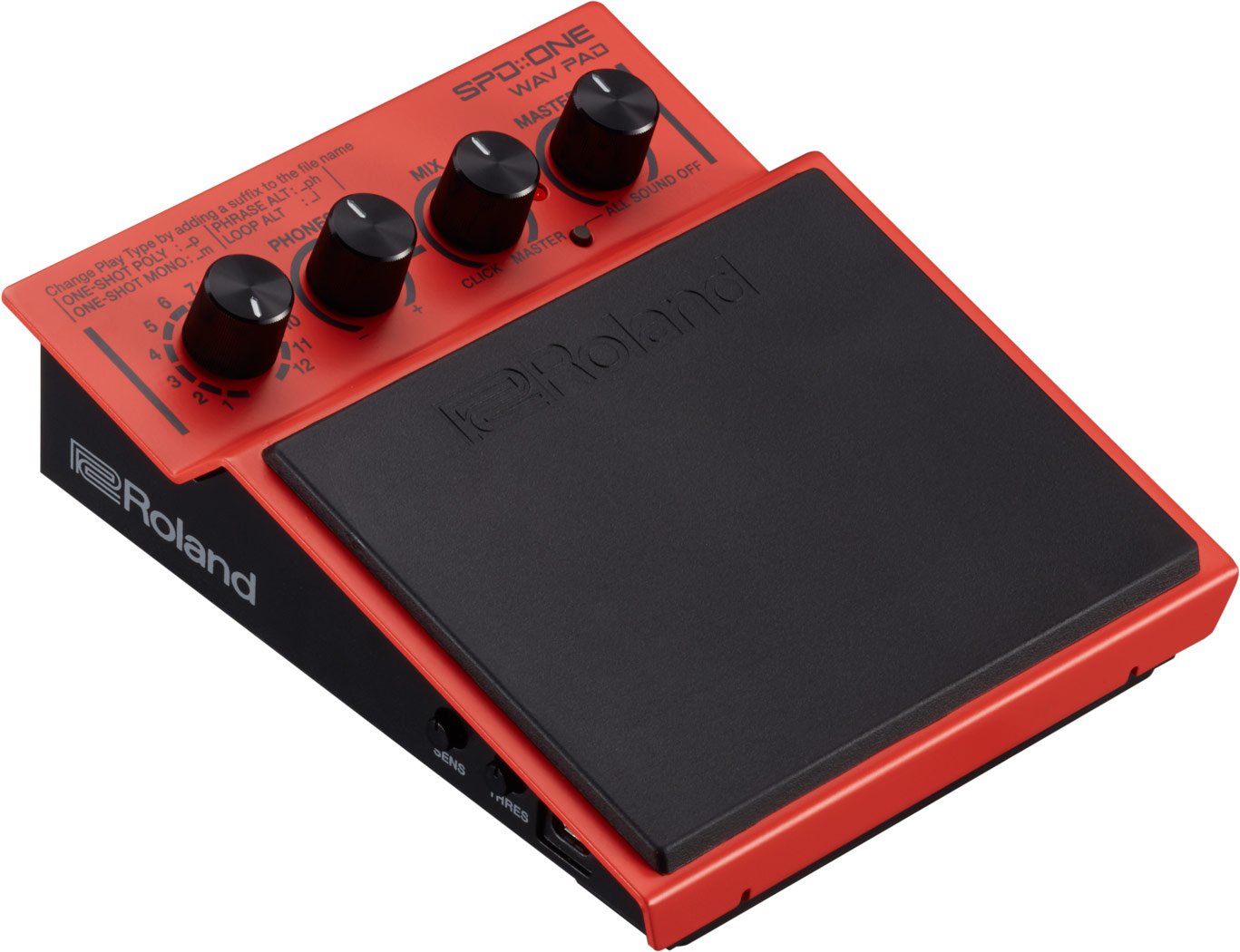

The Roland SPD::ONE WAV PAD is a new type of digital percussion pad, one that allows any musician to perform with their own sounds and samples. Importing audio files is as simple as connecting the SPD::ONE WAV PAD to a PC or Mac and dragging your WAV files into the drive that appears. Whether you need full-length backing tracks or one-shot samples, your sounds can be loaded and played in seconds. Once you’re ready to go, the unit’s robust-yet-sensitive pad can be played with sticks, hands, or feet, and trigger threshold settings are easily adjusted with intuitive controls.
Powered by batteries or AC, the portable SPD::ONE WAV PAD can be used on the floor or a tabletop, or mounted to any rig or drum setup with the included adapter. Operation is simple, even for those musicians who are not technical; just by using four knobs on the control panel, you can change the sound, volume, balance, and more. Whether you’re a drummer, percussion player, guitarist, DJ, or vocalist, the SPD::ONE WAV PAD is a simple and flexible way to expand your sound palette and invigorate your performances.
- Specifications
- Number of Recordable Wave Data
- 12
*Layer and Click waves data are excluded
- Memory
- 4 GB (approx. 360 min. in stereo)
- Data Format
- WAV (44.1 kHz, 16 bits, Stereo/Mono)
- Controls
- WAVE knob
[PHONES] knob
[MIX] knob
[MASTER] knob
[ALL SOUND OFF] button
[THRES] knob
[SENS] knob
[POWER] switch - Indicator
- TRIG Indicator
- Connectors
- MASTER OUT (STEREO) jack: Stereo 1/4-inch phone type
PHONES jack: Stereo 1/4-inch phone type
USB port: Micro-B type
DC IN jack - USB
- Mass Storage Class
MIDI - Power Supply
- Rechargeable Ni-MH battery (AA, HR6) x 4
Alkaline battery (AA, LR6) x 4
AC adaptor (DC9V) - Current Draw
- 300 mA (DC IN)
*Expected battery life under continuous use
Rechargeable Ni-MH battery (AA, HR6):
Normal use: Approx. 7hours
Maximum load use: Approx. 4hoursAlkaline battery (AA, LR6):
Normal use: Approx. 6hours
Maximum load use: Approx. 3hours*These can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.
- Accessories
- Owner’s manual
Leaflet “USING THE UNIT SAFELY”
Attachment
Attachment screws x 2
Holder mounting screws (bolt x 1, nut x 1, washers x 2)*
*Acceptable rod diameters: 8.0–12.7 mm (3/8–1/2 inch)
Alkaline batteries (AA, LR6) x 4 - Options (sold separately)
- AC adaptor: PSA-S series
Stereo Split Cable: PCS-31L
Personal drum monitor: PM-10
Headphones: RH-300V - Size and Weight
- Width
- 140 mm
5-9/16 inches - Depth
- 160 mm
6-5/16 inches - Height
- 56 mm
2-1/4 inches - Weight
- 900 g
2 lbs
