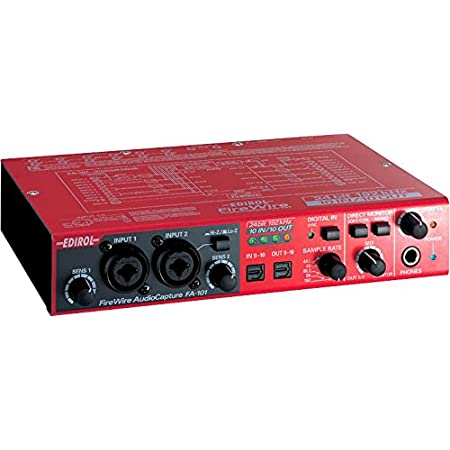

Euphonycart Presents, Roland FA-101 Audio Interface
The FA-101 is a feature-packed 10×10 audio interface that can handle a full 10 channels of input/output at 24-bit/96kHz. Record and monitor all 10 channels simultaneously in full duplex. Phenomenal audio power for the studio musician! In addition, the FA-101 offers 6-channel recording and playback at 24-bit/192kHz for performance at DVD-A quality.
Specification
- NUMBER OF AUDIO RECORD/PLAYBACK CHANNELS
- 44.1/48/88.2/96 kHz
- Record: 10 channels
Playback: 10 channels
Full duplex - 192 kHz
- Record: 6 channels
Playback: 6 channels
Full duplex
* Some computers may not have sufficient performance. - SIGNAL PROCESSING
- PC interface
- 24 bits
- AD/DA Conversion
- 24 bits (linear)
- SAMPLING FREQUENCY
- Digital output
- 44.1/48/88.2/96 kHz
- Digital input
- 44.1/48/88.2/96 kHz
- AD/DA Conversion
- 44.1/48/88.2/96/192 kHz
- FREQUENCY RESPONSE
- 96.0 kHz
- 20 Hz to 40 kHz (+0/-2 dB)
- 88.2 kHz
- 20 Hz to 40 kHz (+0/-2 dB)
- 48.0 kHz
- 20 Hz to 22 kHz (+0/-2 dB)
- 44.1 kHz
- 20 Hz to 20 kHz (+0/-2 dB)
- NOMINAL INPUT LEVEL
- Input Jack 1–2 (XLR type)
- -50 to -10 dBu
- Input Jack 1–2 (1/4 inch TRS phone type)
- -35 to +4 dBu
- Input Jack 3–6
- +4 dBu (balanced)
- Input Jack 7–8
- -10 dBu to +4dBu(balanced)
- NOMINAL OUTPUT LEVEL
- Output Jack 1–8
- +4 dBu (balanced)
- RESIDUAL NOISE LEVEL
- Output Jack 1–2
- 98 dBu
(input terminated with 1 k ohms, MAIN VOLUME: 0 dB,
INPUT SENS: +4 dBu, DIRECT MONITOR VOLUME: OUT1/2 position, IHF-A typ., Balanced) - SN RATIO (TYPICAL)
- OUTPUT
- 108 dB
- INPUT
- 102 dB
- INTERFACE
- Firewire (IEEE1394)
Digital input/outputâ?•Optical type (conforms to IEC60958)
MIDI IN/OUT - CONNECTORS
- Front Panel
- Input Jack 1–2 (XLR type / 1/4 inch TRS phone type)
XLR type (balanced / phantom power +48V)
1/4 inch TRS phone type (balanced)
*INPUT2 jack: high impedance is supportedDigital In Connector(Optical type)
Digital Out Connector (Optical type)
Headphones Jack (Stereo 1/4 inch phone type) - Rear Panel
- Input Jack 3–8 (1/4 inch TRS phone type (balanced))
Output Jack 1–8 (1/4 inch TRS phone type (balanced))
MIDI Connectors (In, Out)
FireWire (IEEE1394) Connectors - OTHERS
- Power Supply
- DC 9V (AC adaptor)
- Current Draw
- 900 mA
- Accessories
- Owner’s Manual
CD-ROM
AC Adatptor
FireWire (IEEE1394) cable (6 pins to 6 pins)
FireWire (IEEE1394) cable (6 pins to 4 pins) - SIZE AND WEIGHT
- Width
- 218 mm
- 8-5/8 inches
- Depth
- 137 mm
- 5-7/16 inches
- Height
- 47 mm
- 1-7/8 inches
- Weight
- 1.0 kg
- 2 lbs. 2 oz.
