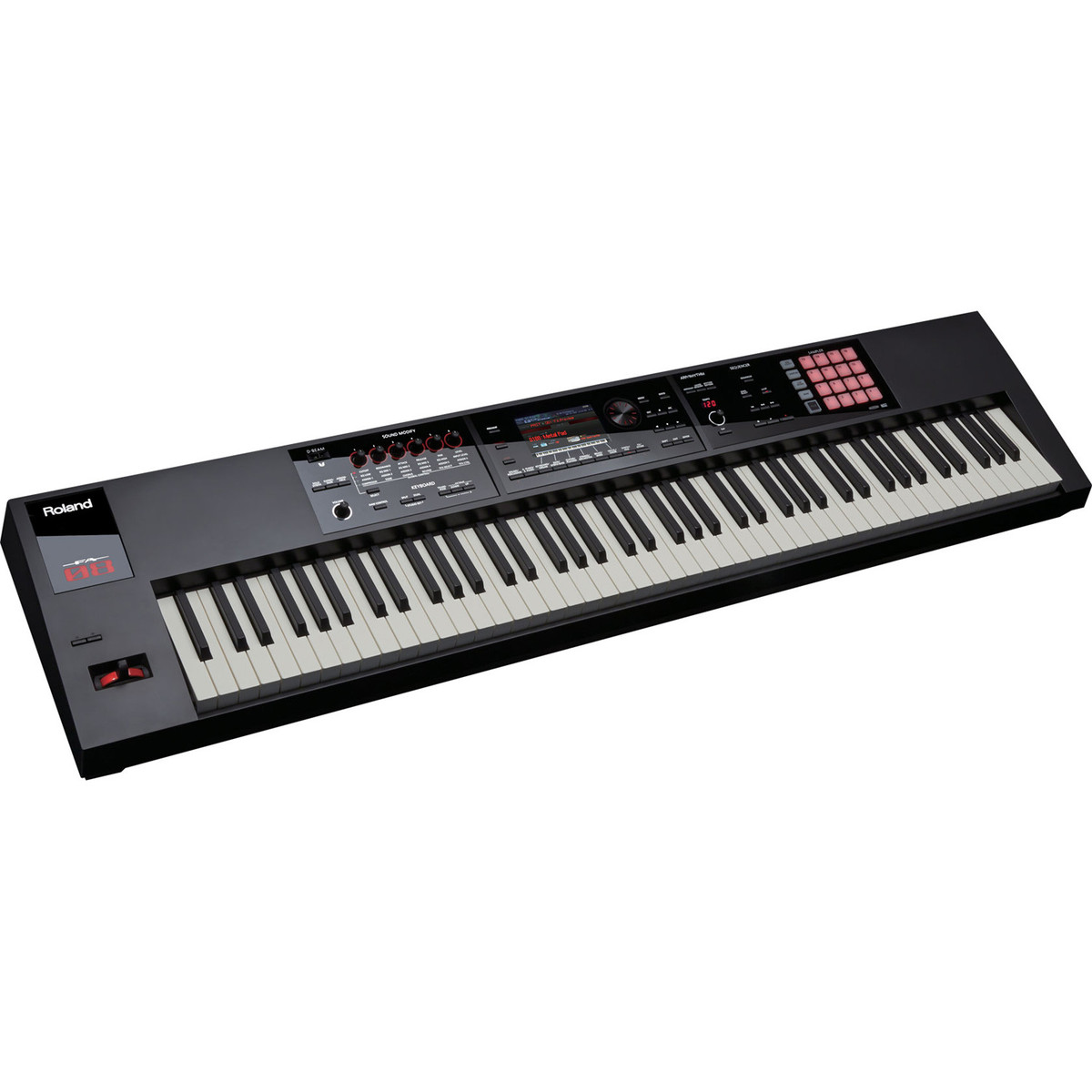

Roland FA 08 Music Workstation

Description

Roland’s FA series completely reimagines the music workstation, streamlining it for effortless real-time power, ultra-fast workflow, and maximum versatility. Each model in the series features a massive sound collection, studio-quality effects, and expressive real-time controls, plus onboard sampling with zero load time for instant playback from 16 pads. An integrated sequencer offers simple operation and non-stop loop recording, and you can easily export tracks for further development with your DAW. Available models include the 61-note FA-06 and 76-note FA-07, which both feature velocity-sensitive keyboards with synth action, and the FA-08, which features an 88-note keyboard with weighted action.

Perform and record with a massive selection of Roland’s very best sounds.

Packed with over 2000 tones inherited from the INTEGRA-7, Roland’s flagship pro sound module, the FA series offers a huge palette of high-quality sounds for virtually any musical style. All of the INTEGRA-7’s SuperNATURAL synth and XV-5080 PCM tones are on board, plus an essential collection of expressive SuperNATURAL acoustic tones that include pianos, organs, bass, strings, and many others. And with the newly added Tone Remain function, you can switch sounds seamlessly with no notes or effect tails being unnaturally cut off.

Expand your sound collection with free downloads from Roland’s Axial sound library site.

The FA sound engine is fully compatible with the large, growing collection of INTEGRA-7 synth patches available as free downloads from Roland’s Axial sound library site. It’s even possible to expand the onboard sound set with free wave sound expansion collections, which you can also get at the Axial site.

Capture ideas and create songs without interruption.

The FA series’ intuitive 16-track sequencer has been designed to let you capture your inspiration as it happens. In a flash, you can build a full arrangement with the instrument’s huge array of sounds. And with continuous recording in loop mode, you’re able to fill up all 16 tracks without ever stopping! In addition to real-time capture, step recording is also possible, and you have complete control to edit and mix your tracks as you go and save songs as stereo audio files to an SDHC card.

Enhance your sounds with a wide range of simultaneous effects.

The FA series provides numerous options for polishing your sounds and sequencer tracks to studio-level perfection. Independent MFX engines are available for all 16 parts of a studio set, and with the unique TFX (total effects), you can process the entire output with dramatic effects such as DJ FX Looper, Isolator, and others. All the effects can be tweaked with the Sound Modify knobs to add real-time expression to your performances and productions.

Fast workflow and intuitive real-time control.

You can feel the speed of this new breed of instrument the moment you hit the power switch—unlike many workstations that can take a minute or more to boot, the FA series is ready to play in seconds. The panel is logically organized into dedicated sections, and the large color LCD presents a gorgeous look with inviting hi-res graphics for selecting tones, working with the sequencer, and adjusting various settings. And it’s a breeze to navigate through the large sound selection by category and assign your favorites for fast recall.

An instant-access performance sampler at your fingers.

The sampler in the FA series features fast, hands-on operation and sampling/playback via convenient SDHC cards. You can play audio samples directly from the 16 pads on the front panel, making it easy to expand your performances with loops, backing tracks, one-shots, vocal phrases, sound FX, and more. And thanks to SDHC flash memory, your samples load instantly, with no wait time at all.

Studio sets enhanced for master rig control.

In the FA series, a studio set stores 16 tones and the various parameters associated with them, including level, pan, effects, and more. Now, master control functionality has been added to studio sets, enabling you to use the FA as a master controller for a large studio or live rig. You can save MIDI messages like bank select, program change, volume, and many others. This info is sent out via MIDI when you select the studio set, letting you reconfigure the FA and multiple external devices with one command.

FA-08  |  88 Keys

If you’re serious about piano sounds, the FA-08 is the perfect choice. Its 88-note, weighted-action Ivory Feel-G keyboard is ideally suited for pulling every expressive nuance from the authentic onboard acoustic and electric pianos.

SPECIFICATIONS:

KEYBOARD

• Keyboard: 88 keys (Ivory Feel-G Keyboard with Escapement)

SOUND GENERATOR SECTION

• Maximum Polyphony: 128 voices (varies according to the sound generator load)

• Parts: 16 parts

• Tones:
  • SuperNATURAL Acoustic
  • SuperNATURAL Synth
  • SuperNATURAL Drum Kit
  • PCM Synth
  • PCM Drum Kit

* GM2 compatible sounds are included.

• Wave Expansion Slots: 2 slots* The wave expansion slots are rewritable internal waveform memory. You can download data from the Axial sound library site and write it via a USB flash drive into the FA’s internal wave memory (slot).

• Favorite: Yes

• Effects:
  • Multi-Effects: 16 systems, 68 types (Vocoder can be used only on part 1.)
  • Part EQ: 16 systems
  • Drum Part COMP+EQ: 6 systems
  • Chorus: 3 types
  • Reverb: 6 types
  • Master Compressor (This can be changed to Insert FX (78 types).)
  • Master EQ
  • Total Effects (TFX): 29 types
  • Mic Input Reverb: 8 types

SEQUENCER

• MIDI Tracks: 16

• File format: Original, SMF export/import supported, WAV export supported

* Sampler trigger data can be recorded.

SAMPLER

• Format: 16-bit linear, 44.1 kHz, WAV/AIFF/MP3 import supported

• Maximum Polyphony: 8

• Number of Samples: 16 Pads x 4 Banks (for each song)

* Samples cannot be used as wave data for the sound engine.

OTHER

• Rhythm Pattern: Yes

• Arpeggio: Yes

• Chord Memory: Yes

• Controllers:
  • D-BEAM Controller
  • Pitch Bend/Modulation Lever
  • Assignable Switch x 2 (S1/S2)
  • Control Knob x 6
  • Sample Pad
  • Tempo Knob

• Display: 5-inch Graphic Color LCD

• External Memory: SD Card (SDHC supported)

• Connectors:
  • Headphones Jack: Stereo 1/4-inch phone type
  • MAIN Output Jacks (L/MONO, R): 1/4-inch TRS phone type
  • Sub Output Jack: Stereo 1/4-inch phone type
  • AUDIO INPUT Jacks
  • LINE: Stereo miniature phone type
  • GUITAR/MIC: 1/4-inch phone type
  • FOOT PEDAL Jacks (CTRL 1, CTRL 2, HOLD)
  • MIDI Connectors (IN, OUT)
  • USB FOR UPDATE Port
  • USB COMPUTER Port (USB Hi-Speed AUDIO/MIDI) (Use a USB cable and a computer with a USB port that support USB 2.0 Hi-Speed.)
  • DC IN Jack

• Power Supply: AC Adaptor

• Current draw: 1,300 mA

• Accessories:
  • Quick Start
  • Leaflet “USING THE UNIT SAFELY”
  • SD Card (installed in the product when shipped from the factory)
  • SD Card Protector (installed in the product when shipped from the factory)
  • AC Adaptor
  • Power Cord

• Options (sold separately):
  • Keyboard Stand (*1): KS-G8, KS-G8B, KS-18Z, KS-12, KS-J8
  • Pedal Switch: DP series
  • Expression Pedal: EV-5
  • USB Flash Memory (*2)
  • Wireless USB Adapter: WNA1100-RL

*1 When using the KS-18Z and KS-J8, ensure that the height of the unit is one meter or lower.
*2 Use USB Flash Memory (supports USB 2.0 Hi-Speed Flash Memory) sold by Roland. We cannot guarantee operation if other products are used.

SIZE AND WEIGHT

• Width: 1415 mm55-3/4 inches

• Depth: 340 mm13-7/16 inches

• Heightl: 142 mm5-10/16 inches

• Weight: 16.5 kg36 lbs. 7 oz.
