Roland EC10M Hybrid Clip Micro Processor

Description

Euphonycart presents Roland EC10M Hybrid Clip Micro Processor. he EC-10M EL Cajon Mic Processor is a unique and innovative creative instrument designed for the acoustic cajon. It reinforces and amplifies your cajon sound so that your performance can always be heard, whether you’re playing in small bars or on large stages. You can also perform with additional sounds such as tambourine, shaker, djembe, and electronic drums. Adding an EC-10M to your set-up turns a standard acoustic cajon into an instrument that can cover a world of percussion. In addition to a standard acoustic cajon, you can also use the EC-10M with various other instruments by simply attaching the dedicated clip-on mic, such as mini cajon, an acoustic guitar or even a cardboard box. The acoustic cajon playing experience is reinvented and extended with the EC-10M ELCajon Mic Processor.

• Easy setup—simply attach the included clip-on condenser mic to the sound hole of the acoustic cajon and start playing
• Amplify the acoustic cajon—the EC-10M can be used as a mic preamp for the supplied microphone
• A variety of sounds—16 onboard kits with tones including tambourine, shaker, djembe, electronic drums, and more can be layered with your acoustic cajon
• Multiple tones—play two different electronic sounds by slapping either the edge or head of your acoustic cajon
• Add pedals—up to two kick-trigger pedals (Roland KT-10, KT-9, or KD-7) can be connected to play additional sounds; integrated A/B foot pads can also trigger sounds
• Create loops and play along—a simple looper function allows recording of rhythm phrases using the onboard sounds
• Versatile outputs—send the microphone and layered sounds to a PA mixer via two independent outputs, or mix all sounds into one mono output

SPECIFICATIONS

Sound Kit Variation 16 Layered Sound Contents 2 (High, Low)Controls[Top Panel]
POWER switch
(MIC) COMPRESSOR knob
(MIC) VOLUME knob
(ELECTRONIC) THRESHOLD knob
(ELECTRONIC) VOLUME knob

MODE SELECT button
A button
B button

[Left Side]
MIC GAIN knob
ENHANCE switch Indicators KIT Number

Connectors

TRIGGER INPUT jack: 1/4-inch TRS phone type
MIC INPUT jack: Stereo miniature type (Use included clip mic only)
MIC/MIX OUTPUT jack (MONO): 1/4-inch phone type
ELECTRONIC OUTPUT jack (MONO): 1/4-inch phone type
DC IN jackPower SupplyAC adaptor (DC5.7V)
Rechargeable Ni-MH battery (AAA, HR03) x 4Current Draw150 mAExpected battery life under continuous useApprox. 5 hours.
* These can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.AccessoriesClip Mic
Owner’s manual
Leaflet “USING THE UNIT SAFELY”
AC adaptorOptions (sold separately)Kicks: KD-7, KT-9, KT-10

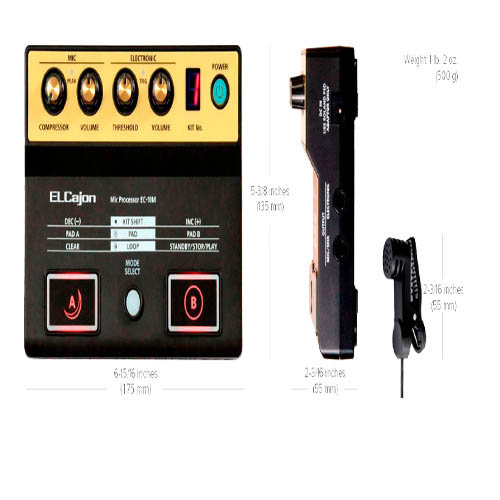

Stereo Split Cable: PCS-31LSIZE AND WEIGHTWidth175 mm
6-15/16 inchesDepth135 mm
5-3/8 inchesHeight55 mm
2-3/16 inchesWeight500 g
1 lb. 2 oz.
