Description

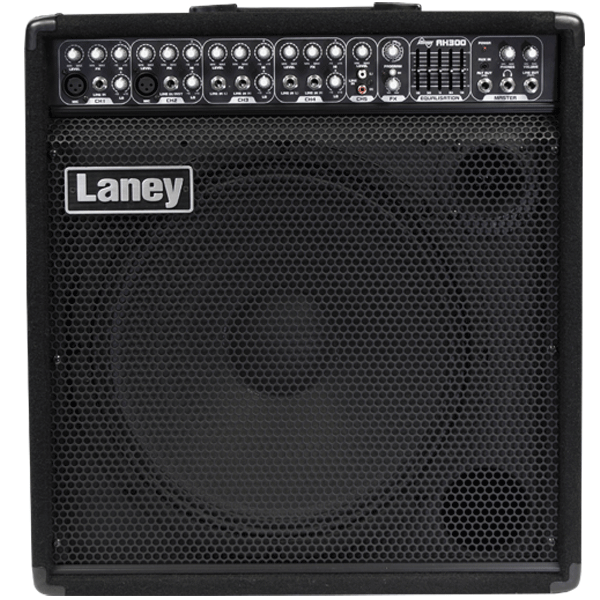

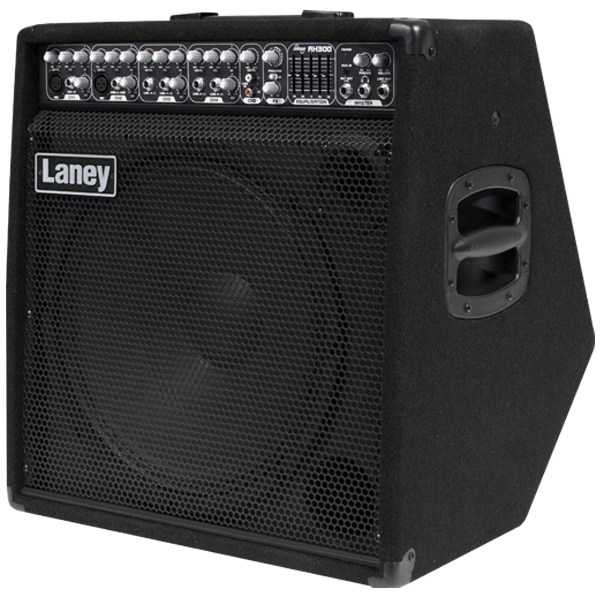

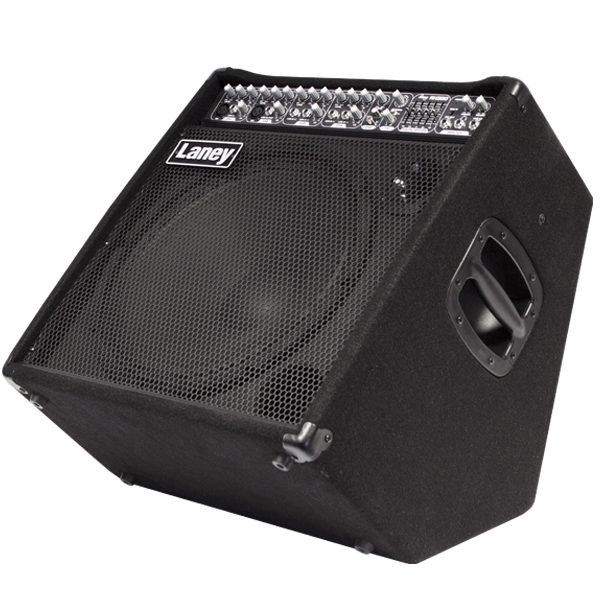

The LANEY AH300 multi-input combo features 5 channels, 5-band graphic master EQ and on-board effect. 300W RMS power is coupled to a 15” woofer plus tweeter.
The principle behind the Audiohub range is simple: ALL INSTRUMENTS WELCOME! Audiohub combos deliver optimum performance, flexibility and sound quality for a wide array of audio inputs: Keyboards, e-drums, mics, acoustic and electric instruments and playback are all at home with an Audiohub combo.
COMPREHENSIVE PRE-AMP
Designed with flexibility in mind, the AH300 has 5 channels with a variety of input options including XLR, Jack, RCA and Mini Jack. Each channel has a Level control and CH 1-4 also feature two-band EQ and FX send. The 5-band Master Graphic EQ provides control of the overall mix.
ON BOARD EFFECTS
The AH300 features 16 on board digital effects presets. Options include reverbs, delays, echo, chorus + reverb, chorus + delay and reverb + delay. In addition the effect level can be adjusted independently on CH 1-4 via their FX send controls.
OUTPUT FLEXIBILITY

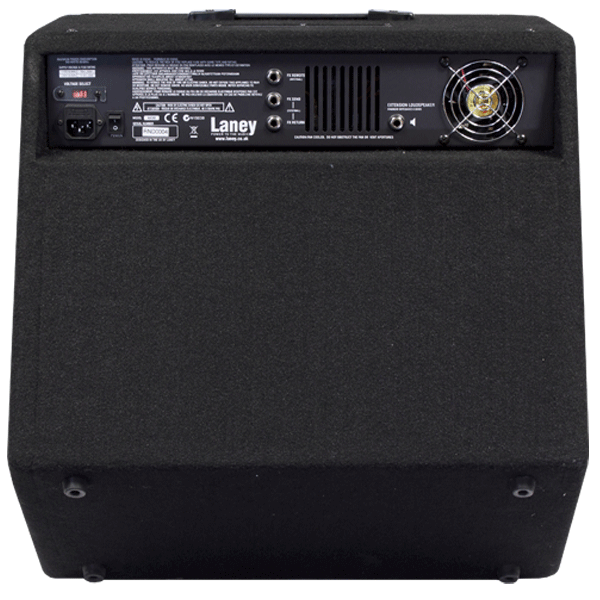

The AH300 has a comprehensive selection of output options: Line Out is post master volume, so is ideal for linking to another amplifier or PA whilst retaining control from the AH150. Alt Out sends the mix pre Graphic EQ, Master Volume and Aux in. This defers master control to front of house or works as a record out without including the backing tracks. A Phones connection with Level control allows headphones for silent use or performance monitoring.
PERFORMANCE
Rated at 300 Watts RMS and housing a 1 × 15” Custom Designed Driver and HF Horn the AH300 delivers serious power.
Specification
- MINI JACK FOR EXTERNAL SOUND SOURCE
- CARPET COVERED, DUAL POSITION KICKBACK CABINET
- AUX/CD INPUT 3.5MM STEREO JACK
- 5 CHANNELS: –
- CH 1: BALANCED XLR/UNBALANCED LINE,
- CH 2: BALANCED XLR/HI-Z INSTRUMENT,
- CH 3 & 4: STEREO UNBALANCED LINE AND
- CH 5: RCA LINE INPUT.
-
- CHANNEL CONTROLS LEVEL,
- TREBLE (CH 1 – 4),
- BASS (CH 1 – 4),
- FX LEVEL (CH 1 – 4)
- 1 X 15″ CUSTOM DESIGNED LOUDSPEAKER & HF HORN
- ON-BOARD DSP FEATURING 16 PRESETS WITH PARAMETER ADJUSTMENT
- MASTER 5 BAND GRAPHIC EQ (±12DB)
- FOOTSWITCH OPTION FS 1 (NOT SUPPLIED)
- YES – INSERT MODE
- YES WITH LEVEL CONTROL
- JACK INPUTS ON ALL CHANNEL – XLR INPUT ON CH1 & CH2
- YES
- YES
- YES
- 615 X 555 X 480
- 300 WATTS
- MINIMUM 8 OHMS
- 548 X 515 X 435
- 21.5KG (UNIT)
- YES
- MASTER SECTION CONSISTING OF MASTER FX, VOLUME AND PHONO LEVELS
