Description
Portable & Easy to Use

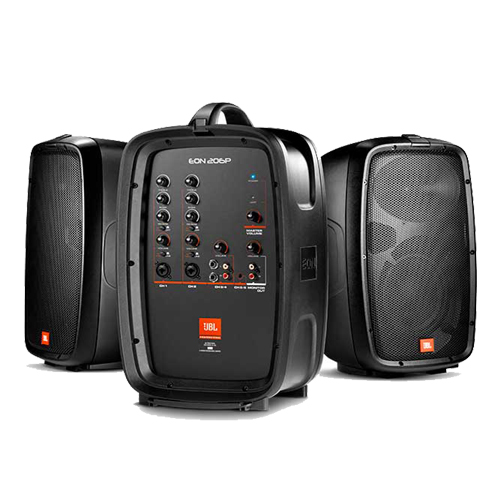

The EON206P is light enough to carry in one hand. The powered mixer panel and dual full ranged speakers, combine to form a convenient suitcase-like package. Complete with power and connection cables that go into their own storage space designed to neatly tuck them into when your done. Weighing in at only 25lbs, anyone can juggle an instrument and our personal p.a. system at the same time. Perfect for cafes, parties, churches, conferences, small groups and more.
Powered Mixer Input Panel
The attached mixer has 6 inputs: 2 mono inputs comprised of a combination input connector, MIC/LINE selector, Treble and Bass controls, Reverb and channel volume controls. The 4 stereo inputs are where you can connect all of the microphones, musical instruments and external sound sources (like MP3 or CD players). The stereo inputs labeled “CH 3/4” offer the option of using RCA with a volume control. The input labeled “CH5/6” is a 3.5 mm stereo input of the type typically found on personal music players. The “Monitor Out” enables sourcing to recording devices, additional powered speakers or mixers via RCA connectors.
The attached mixer has 6 inputs: 2 mono inputs comprised of a combination input connector, MIC/LINE selector, Treble and Bass controls, Reverb and channel volume controls. The 4 stereo inputs are where you can connect all of the microphones, musical instruments and external sound sources (like MP3 or CD players). The stereo inputs labeled “CH 3/4” offer the option of using RCA with a volume control. The input labeled “CH5/6” is a 3.5 mm stereo input of the type typically found on personal music players. The “Monitor Out” enables sourcing to recording devices, additional powered speakers or mixers via RCA connectors.
Specifications
System Type:
2 Self powered 6.5”,
two-way, bass-re?ex
two-way, bass-re?ex
Max SPL Output:
113 dB
Frequency Range (-10dB):
64Hz – 22kHz
Frequency Response (-3dB):
77Hz – 20kHz
Coverage Pattern:
100° x 80°
Ampli?er Design:
Class D
Power Rating:
160 W (2 X 80W)
Package Dimentions (mm):
530 x 705 x 340
(H x W x D) (in):
20.9” X 27.8” x 13.4”
Net Weight:
11.38 kg (25 lbs)
EON206 POWERED MIXER
Input Connectors:
6 inputs (2 Mono Mic/Line, 2 x Stereo)
Channels:
1-2 are XLR / 1/4” jack combo connectors
XLR is a mic level input, 1/4” is a line level input, 3-4, one pair of 1/4” balanced TRS jacks (stereo), and a pair of RCA jacks (stereo) 5-6 is a 3.5 mm stereo jack
XLR is a mic level input, 1/4” is a line level input, 3-4, one pair of 1/4” balanced TRS jacks (stereo), and a pair of RCA jacks (stereo) 5-6 is a 3.5 mm stereo jack
Input Impedance:
Ch 1-2 Combo: XLR 40 K Ohms Balanced
Ch 1-2 Combo: TRS 40 K Ohms Balanced
Ch 3-4: TRS 20 K Ohms Balanced
Ch 3-4: RCA 5 K Ohms Unbalanced
Ch 5-6: 3.5 mm 10 K Ohms Unbalanced
Ch 1-2 Combo: TRS 40 K Ohms Balanced
Ch 3-4: TRS 20 K Ohms Balanced
Ch 3-4: RCA 5 K Ohms Unbalanced
Ch 5-6: 3.5 mm 10 K Ohms Unbalanced
Output Connectors:
Monitor outputs:
one pair of RCA jacks (stereo)
one pair of RCA jacks (stereo)
Signal Indicators:
Limit:
Yellow LED indicates limiter active condition
Yellow LED indicates limiter active condition
EQ:
Individual channel Bass and Treble controls, center detent, +/-12 dB cut and boost
System Limiter:
On Board DSP Limiting and Tuning
