Description

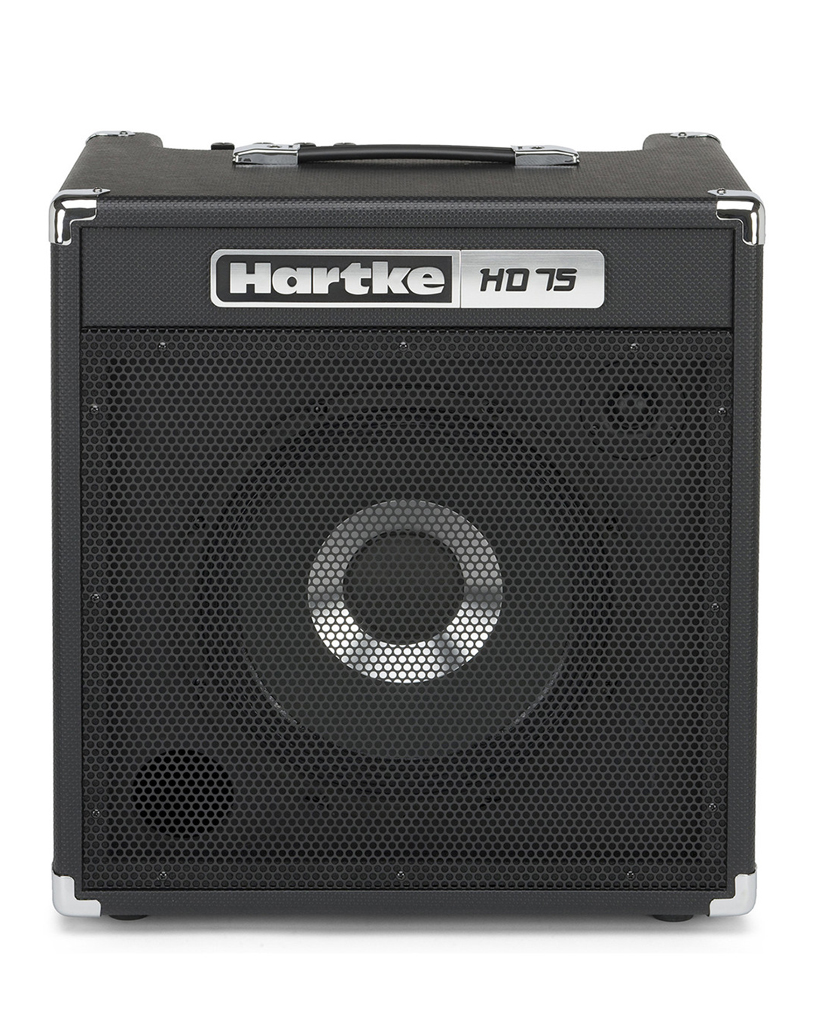

The Hartke HD75 Bass Combo Amp is a sleek and portable combo amplifier that is equipped with Hartke’s patented HyDrive speaker technology. Capable of greatly enriching your low-end tone while delivering enough power for any rehearsal space or small performance venue, the HD75 features a top-mounted amplifier panel and a 7-band graphic EQ, plus flexible input and output connection. Offering extensive tone-shaping capabilities, the Hartke HD75 Bass Combo Amp is suitable for bass players of all genres and styles.
The HyDrive Design
The HD75 employs Hartke’s patented HyDrive Speaker Technology that consists of a carefully crafted half paper, half aluminium cone bass speaker. This innovative design combines the warmth and roundness of paper with the punch and attack of aluminium to produce a versatile and punchy tone.
Powerful and Portable
The user-friendly HD75 combo is packed with professional-level features such as volume, bass, mid and treble controls that are situated on the top-mounted amplifier panel. Also included is a 7-band graphic EQ that allows you to find your own signature sound. The full effects loop and 1/8″ stereo aux input allow you to play along with your favourite tracks, while the 1/4” headphone output is ideal for silent practice sessions. Additionally, the HD75 enclosure is finished with stylish aesthetics and a moulded strap carrying handle.
Features
75 watts of output power
12” HyDrive paper and aluminium cone driver
1” tweeter

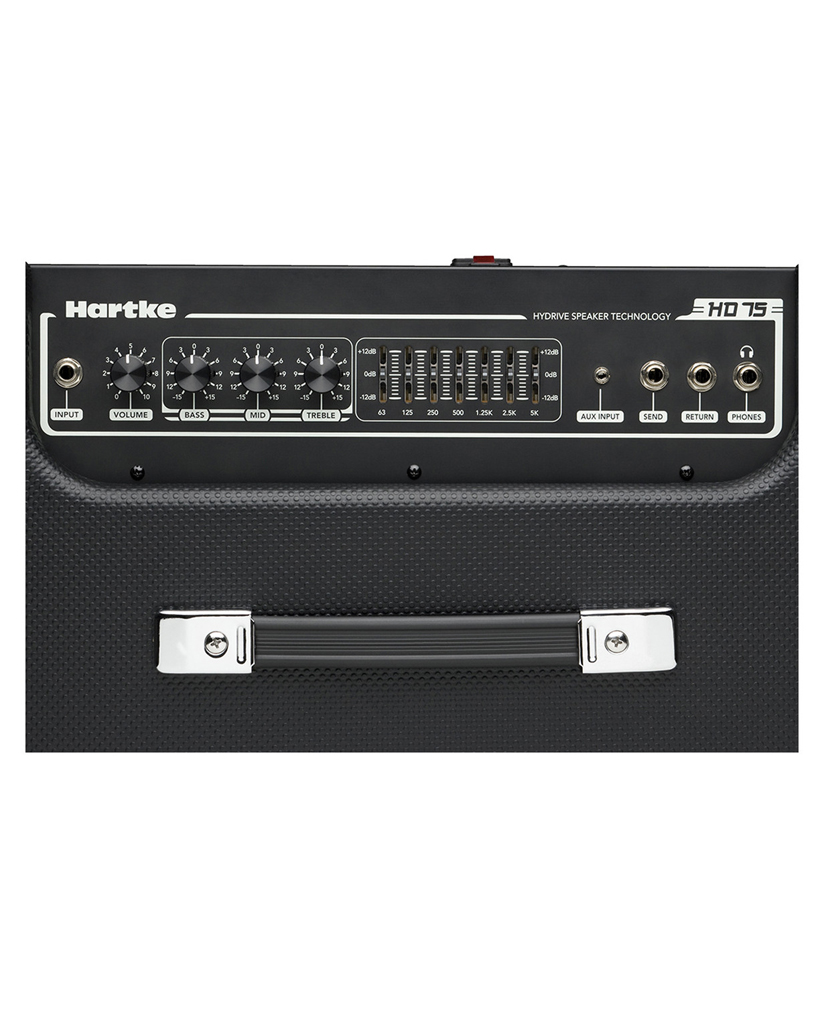

Top-mounted amplifier with Volume, Bass, Mid and Treble controls
7-band graphic EQ
Dual 1/4” inputs for active and passive bass guitars
1/8” stereo Aux input for stereo line level devices such as MP3 players, drum machines etc
1/4” headphone output
XLR direct output
Built-in limiter
Effects loop
Perforated metal grill
Moulded strap carrying handle
Specifications
Driver: 12” HyDrive Paper and Aluminium Cone Driver
Tweeter: 1” Tweeter
Rated Output Power: 75 Watts, 1kHz, 16?
Rated Input Level: 44.6mv RMS at 1kHz
Total Harmonic Distortion: 0.32 (At 1dB Below Rated Output, 1kHz Typical)
Signal to Noise Ratio: 1W/62dB
Signal Gain Speaker Output: 35V
Signal Gain to Send Jack: 545mV
Equalizer Center Frequency:
Bass: 50Hz
Middle: 700Hz
Treble: 10kHz
Seven-Band Graphic EQ Frequencies: 63Hz, 125Hz, 250Hz, 500Hz, 1.25kHz, 2.5kHz, 5kHz
Weight: 24.7kg / 48.2lbs
Dimensions: 506mm x 472mm x 353mm / 19.9” x 18.6” x 13.9”
