Boss MICRO BR 80 Digital Recorder

Description

• Three modes: MTR (multi-track recorder), eBand, and Live Rec
• Records directly to SD/SDHC memory card (up to 32 GB)
• High-quality stereo condenser microphone built in for instant audio capture
• 64 V-Tracks and eight simultaneous playback tracks
• eBand function for phrase training and play-along tracks
• Huge library of built-in backing and rhythm patterns
• World-class COSM amps and effects onboard
• Use as a USB audio interface with built-in effects

TRACKSMTR ModeTracks: 8
Simultaneously recording track: 2
V-Track: 64 (8 V-Tracks per each Track)eBand ModeTracks: 2 (stereo)
Simultaneously recording track: 2 (stereo)LIVE REC ModeTracks: 2 (stereo)
Simultaneously recording track: 2
*Either the playback or the recordingRECORDING MEDIA SDHC Memory Card (4 GB to 32 GB)
SD Memory Card (1 GB to 2 GB)DATA TYPEMTR ModeLinear (Bit Depth: 16 bits)eBand ModeeBand Songs (Recording/Playback)
WAV (Bit Depth: 16 bits, Playback only)
MP3 (Bit Rates: 64 kbps to 320 kbps, Playback only)LIVE REC ModeWAV (Bit Depth: 16 bits, Recording/Playback)
MP3 (Bit Rates: 64 kbps to 320 kbps, Recording/Playback)AD/DAAD Conversion24 bitsDA Conversion24 bitsSample Rate44.1 kHzRECORDING TIME (CONVERSION IN ONE TRACK)MTR Mode3 hours (1 GB), 100 hours (32 GB)eBand ModeeBand Song: 4 hours (1 GB), 130 hours (32 GB)
WAV 16-bit, stereo: 1.5 hours (1 GB), 50 hours (32 GB)
MP3 128 kbps, stereo: 16 hours(1 GB), 550 hours (32 GB)LIVE REC ModeWAV 16-bit, stereo: 1.5 hours (1 GB), 50 hours (32 GB)
MP3 128 kbps, stereo: 16 hours (1 GB), 550 hours (32 GB) * The above-listed recording times are approximate. Times may be slightly shorter depending on the number of songs that were created.
* The above number of the MTR mode is the total for all the tracks that are used. If each of the eight tracks contain an equal amount of data, the length of the resulting song will be approximately 1/8 of the above.OTHERNominal Input LevelGUITAR/MIC IN jack: -20 dBu (GUITAR/MIC SW = GUITAR), -40 dBu (GUITAR/MIC SW = MIC)
LINE IN jack:-10 dBuInput ImpedanceGUITAR/MIC IN jack: 1M ohm (GUITAR/MIC SW = GUITAR), 6k ohms (GUITAR/MIC SW = MIC)
LINE IN jack: 10k ohmsNominal Output LevelPHONES/LINE OUT jack: -14 dBuOutput ImpedancePHONES/LINE OUT jack: 22 ohmsDisplayGraphic LCD 128 x 64 dots (with backlit)USB Functions24-bit/44.1 kHz USB-AUDIO (Hi-Speed USB)
USB Mass Storage Class (Hi-Speed USB)

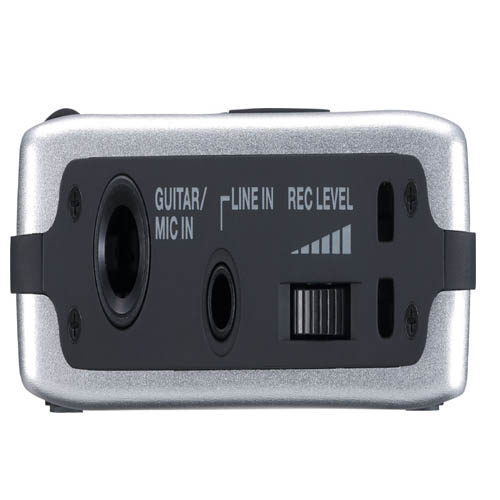

BUS Power operationConnectorsGUITAR/MIC IN jack (1/4″ phone type)
LINE IN jack (Stereo miniature phone type)
PHONES/LINE OUT jack (Stereo miniature phone type)
USB connector (mini-B type)
DC IN jackPower SupplyDC 9V: AC Adaptor (sold separately)
Alkaline battery (AA, LR6) x 2
Rechargeable Ni-MH battery (AA, HR6) x 2
USB Bus Power Expected battery life: Approximately 6 hours (Alkaline dry cell batteries/with continuous playback of 8 tracks, power save function)
* May vary according to usage conditions, batteries used, and type of SD card used.Current Draw130 mA (DC IN)AccessoriesSD Memory Card, USB Cable (mini-B type), Alkaline battery (AA, LR6) x 2, Owner’s ManualOptions (sold separately)AC Adaptor (PSA series), Silicone Rubber Case and Carrying Pouch: BA-BR80SSIZE AND WEIGHTWidth138 mm
5-7/16 inchesDepth86 mm
3-7/16 inchesHeight22 mm
0-7/8 inchesWeight140 g0 lbs. 5 oz.
