Boss GP10 GK Multi Effects Guitar Processor

Description

The new GP-10 puts a universe of amazing tones and tunings at your command, all in one compact processor that’s affordable and easy to use. With a Roland GK-compatible pickup on your guitar, the GP-10 lets you transform your sound into numerous classic electric and acoustic guitar types, basses, and even analog-modeled synths, including the legendary Roland GR-300. Not stopping there, you have access to instant altered tunings, including popular open tunings, 12-string tones, and “down” tunings that are essential for today’s ultra-heavy rock styles. The versatile GP-10 also functions as a full-featured multi-effects processor for both GK and normal pickups, giving you a huge selection of COSM amps and effects for live playing and studio recording. In addition, USB connectivity lets you capture GP-10 tones directly into your DAW, and you can even play computer-based soft synths from your axe with the GP-10’s guitar-to-MIDI converter!

The compact GP-10 is both an instrument modeling processor and a powerful multi-effects unit. Its multi-effects section features flagship-level COSM amps and effects, and these can be used with any guitar via a standard 1/4-inch cable. Plugging into the GP-10’s GK input with a Roland GK-compatible pickup and a 13-pin cable unlocks the instrument modeling section, opening up a world of amazing sonic possibilities for both live playing and studio recording.

SPECIFICATIONS:

• Modeling :
  • Electric guitar: 12 types
  • Acoustic: 9 types
  • Bass: 3 types
  • Guitar synthesizer: 3 types
  • Poly FX: 5 types
• Alternate Tuning
  • OPEN: D, E, G, A
  • DROP: D to A
  • D-MODAL
  • NASHVILLE
  • SHIFT: -12 to +12
  • USER: 12-string guitar function
• Effects
  • Preamp: 30 types
  • FX: 16 types (including OD/DS)
  • OD/DS: 21 types
  • Wah: 6 types
  • Chorus: 3 types
  • Delay: 10 types
  • Reverb: 7 types
  • EQ: 1 type
  • Noise Suppressor(NS): 1 type
• Patch Memory: 99
• AD Conversion
  • GK Pickup: 24 bits
  • GUITAR IN: 24 bits + AF method
• DA Conversion: 24 bits
• Sampling Frequency: 44.1 kHz
• Nominal Input Level:
  • GUITAR INPUT: -10 dBu
  • AUX IN: -20 dBu
• Input Impedance
  • GUITAR INPUT: 1 M ohm
  • AUX IN: 27 k ohms
• Nominal Output Level
  • OUTPUT L/MONO, R: -10 dBu
  • GUITAR OUT: -10 dBu
  • PHONES: -10 dBu
• Output Impedance
  • OUTPUT L/MONO, R: 2 k ohms
  • GUITAR OUT: 2 k ohms
  • PHONES: 44 ohms
• Recommended Load Impedance
  • OUTPUT L/MONO, R: 20 k ohms or greater
  • GUITAR OUT: 20 k ohms or greater
  • PHONES: 16 ohms or greater
• Pedals
  • Pedal switch x 4
  • Expression pedal x 1
• Display: 16 characters, 2 lines (backlit LCD)

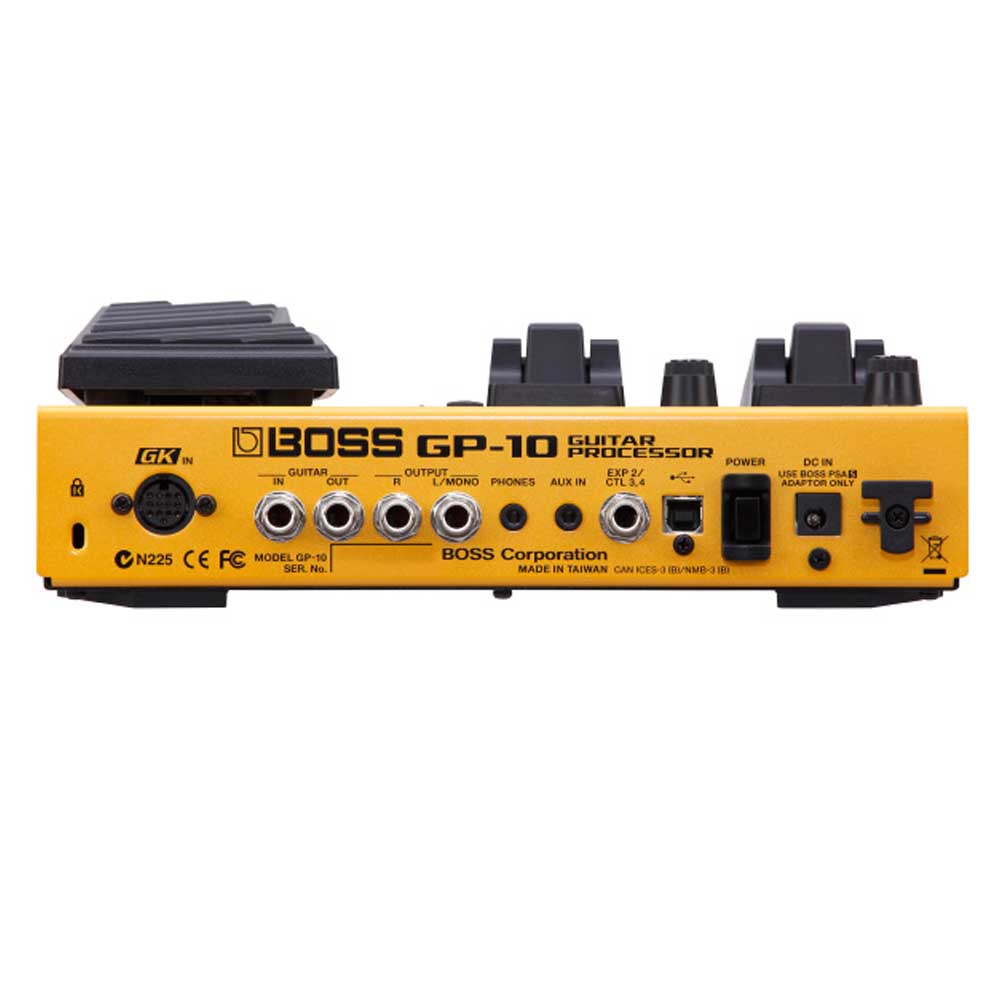

• Connectors
  • GK IN connector: 13-pin DIN type
  • GUITAR IN jack: 1/4-inch phone type
  • GUITAR OUT jack: 1/4-inch phone type
  • OUTPUT (L/MONO, R) jacks: 1/4-inch phone type
  • PHONES jack: Stereo miniature phone type
  • AUX IN jack: Stereo miniature phone type
  • EXP 2/CTL 3, 4: 1/4-inch TRS phone type
  • USB port: USB type B
  • DC IN jack
• Power Supply: AC adaptor
• Current Draw: 350 mA
• Accessories:
  • AC adaptor
  • Owner’s manual
  • Leaflet “USING THE UNIT SAFELY”
  • Divided pickup (Roland GK-3) (only for GK included model)
  • GK cable (3 m, 10 feet) (only for GK included model)
• Options (sold separately)
  • Divided pickup: Roland GK-3
  • GK cable: Roland GKC-5 (5 m), GKC-10 (10 m)
  • GK parallel cable (GK pickup <–> GK connector x 2): Roland GKP-2
  • Unit selector: Roland US-20
  • Footswitch: FS-5U
  • Dual footswitch: FS-6, FS-7
  • Expression pedal: Roland EV-5, FV-500L/500H

SIZE AND WEIGHT

• Width: 251 mm9-15/16 inches
• Depth: 207 mm8-3/16 inches
• Height: 71 mm2-13/16 inches
• Weight: 1.9 kg4 lbs. 4 oz.

SIZE AND WEIGHT (MAXIMUM HEIGHT:)

• Width: 251 mm9-15/16 inches
• Depth: 207 mm8-3/16 inches
• Height: 93 mm3-11/16 inches
• Weight: 1.9 kg4 lbs. 4 oz.
