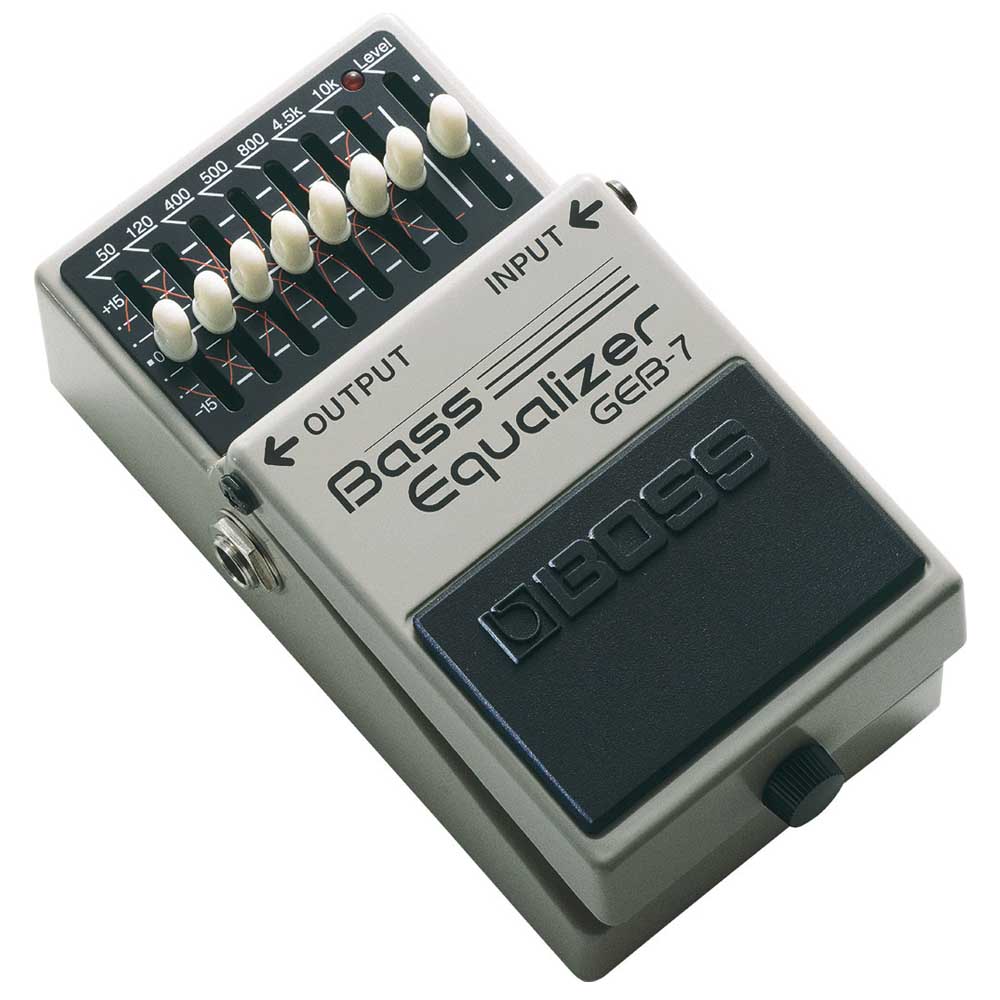

Boss GEB7 Bass Equalizer Pedal

Description

The GEB-7 is a seven-band equalizer created specifically for the frequency range of the electric bass. Since the frequency range extends down to 50Hz, the GEB-7 is also great for adjusting depth and bottom end of an upright bass with pickups.

FEATURES:

• 50Hz to 10kHz frequency range specifically designed for bass
• Full range response, even for five- and six-string basses
• Can be used as a “boost” or “cut” pedal using the level control knob
• Great for eletric-acoustic bass applications
• AC adaptor or 9V battery operation
• BOSS five-year warranty

SPECIFICATIONS:

• Nominal Input Level-20 dBu
• Input Impedance1 M ohms
• Nominal Output Level-20 dBu
• Output Impedance1 k ohms
• Residual Noise Level-100 dBu (IHF-A, Typ.)
• Variable RangeEqualizer Control: +/- 15 dB, Level Control: +/- 15 dB
• ConnectorsINPUT Jack, OUTPUT Jack, AC Adaptor Jack (DC 9 V)
• Power SupplyDC 9 V: Dry Battery 9 V type (6F22/9 V), AC AdaptorCurrent Draw16 mA (DC 9 V)
• AccessoriesDry Battery 9 V type (6F22/9 V)
• OptionAC Adaptor (PSA-Series)

SIZE AND WEIGHT ( INCL. BATTERY )

• Width: 73 mm2-7/8 inches
• Depth: 129 mm5-1/8 inches
• Height: 59 mm2-3/8 inches
• Weight: 440 g1 lbs.
