Boss DD500 Digital Delay

Description

SPECIFICATIONS

Sampling Frequency 96 kHz AD/DA

Conversion 32 bits

Processing 32-bit floating point

Delay Modes 12 modes
STANDARD
ANALOG
TAPE
VINTAGE DIGITAL
DUAL
PATTERN
REVERSE
TERA ECHO
SLOW ATTACK
FILTER
SHIMMER
SFXMaximum delay time10 sec.(depends on delay mode)Phrase loop60 sec. (96 kHz/MONO, 48 kHz/STEREO)
120 sec. (48 kHz/MONO)
Delay can be applied.Patches198 (99 banks x 2 [A] [B]), 297 (99 banks x 3 [A] [B] [C])PedalsFoot switch x 3 [A][B][TAP/CTL]KnobsMODE
TIME/VALUE
FEEDBACK
E.LEVEL
TONE

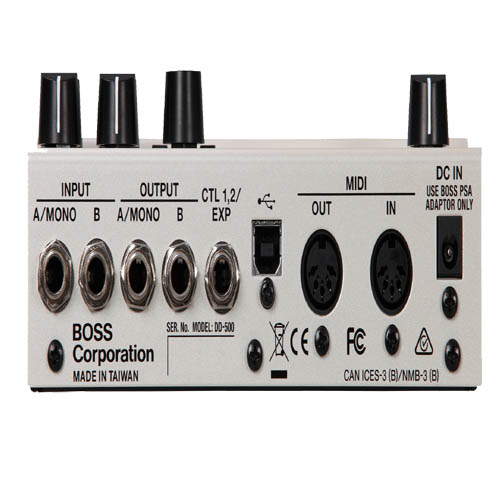

MOD DEPTHDisplayGraphic LCD (128 x 64 dots, backlit LCD) x 1Nominal Input LevelINPUT A/MONO, B: -10 dBuMaximum Input LevelINPUT A/MONO, B: +8 dBuInput ImpedanceINPUT A/MONO, B: 1 M ohmNominal Output LevelOUTPUT A/MONO, B: -10 dBuMaximum Output LevelOUTPUT A/MONO, B: +8 dBuOutput ImpedanceOUTPUT A/MONO, B: 2 k ohmsRecommended Load ImpedanceOUTPUT A/MONO, B: 20 k ohms or greaterBypassBuffered bypass or True bypass (with relays)ConnectorsINPUT A/MONO, B jacks: 1/4-inch phone type
OUTPUT A/MONO, B jacks: 1/4-inch phone type
CTL 1,2/EXP jack: 1/4-inch TRS phone type
USB COMPUTER port: USB type B USB-MIDI
MIDI (IN, OUT) connectors
DC IN jackPower SupplyAlkaline battery (AA, LR6) x 4
AC adaptor Current Draw 200 mA

Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)Alkaline: Approx. 7 hoursAccessoriesOwner’s manual
Leaflet “USING THE UNIT SAFELY”
Alkaline battery (AA, LR6) x 4Options (sold separately)AC adaptor: PSA series
Footswitch: BOSS FS-5U, FS-5L
Dual Footswitch: BOSS FS-6, FS-7
Expression Pedal: BOSS FV-500H, FV-500L, Roland EV-5SIZE AND WEIGHTWidth170 mm
6-3/4 inchesDepth138 mm
5-7/16 inchesHeight62 mm
2-1/2 inchesWeight (including battery)1.0 kg
2 lbs 4 oz.

• Studio-level sound with class-leading 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate
• 12 versatile delay modes from vintage to modern deliver unlimited creative possibilities
• Unrivaled real-time expression with customizable control settings for onboard and external switches
• Graphic LCD for easy, intuitive operation while performing and editing
• Onboard patch memories and hands-on controls
• Equipped with a built-in Phrase Looper, MIDI, USB, and more
• Selectable buffered-bypass or true-bypass operation
• Runs on four AA-size batteries or PSA-series AC adapter
• Dedicated editor software availableDD-500 Version 2 Software Newly Added Features
• Improved A/B Simul mode with more flexible control and input/output options
• Five newly added effects, including vintage Binson Echorec 2, touch-responsive filter delay, and more
• Additional detailed tone-editing parameters such as feedback damp and modulation mode
• More flexible routing options with the new Insert Loop function, selectable EQ insertion position, expanded independent delay connection modes, and more
• Enhanced effects with extended parameters and sound quality refinements, including stereo pitch shifters and overtone effects for Shimmer mode, effect targets for Slow Attack mode, and more*For complete DD-500 Version 2 software details, please refer to the supplementary manual available in the Support section
