Description

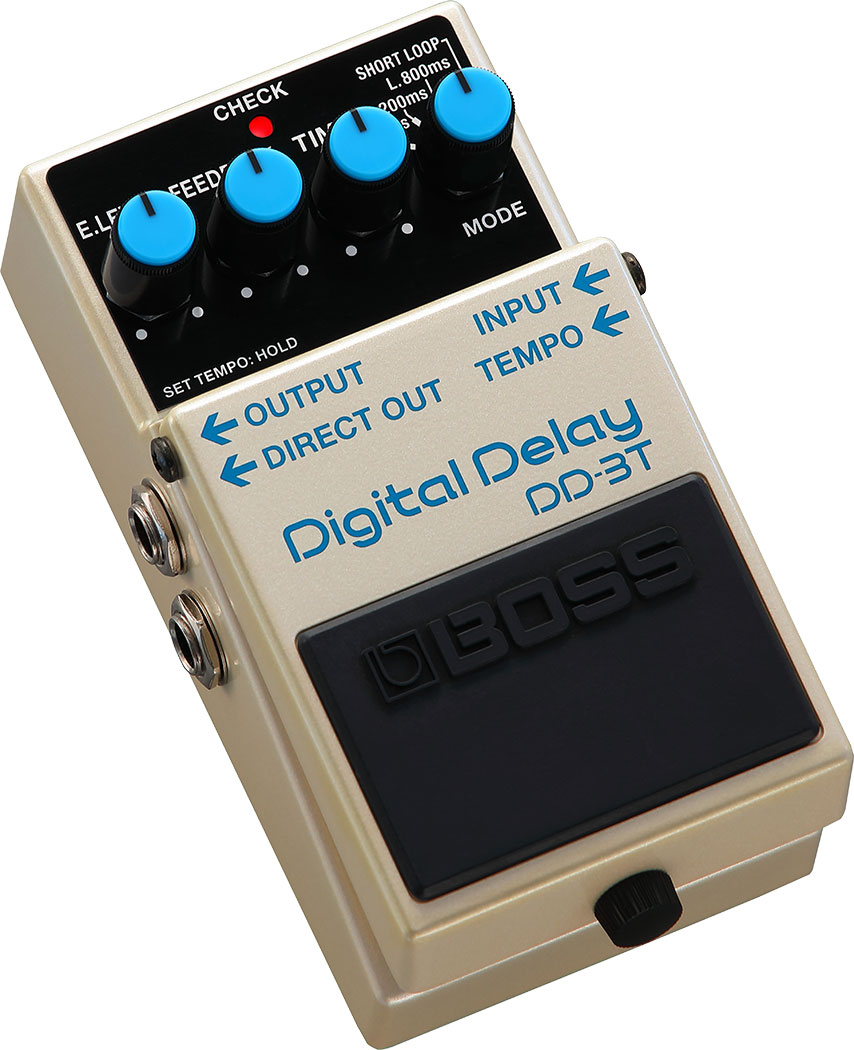

Euphonycart Presents, Boss DD-3T
BOSS’s iconic DD-3 Digital Delay has been a pedalboard staple since 1986, loved everywhere for its great sound and simple operation. With the DD-3T, we’ve updated the classic stomp with enhanced functionality while fully retaining the original’s sound and control layout. It’s now possible to tap in delay tempos using the onboard switch or an external one, with your choice of three beat subdivisions. And the direct output jack has been moved next to the main output, providing easier connectivity for wet/dry setups.
Specification
- Nominal Input Level
- -20 dBu
- Input Impedance
- 1 M ohm
- Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohm
- Recommended Load Impedance
- 10 k ohms or greater
- Bypass
- Buffered bypass
- Controls
- MODE knob
TIME knob
FEEDBACK knob
E.LEVEL(Effect Level) knob
Pedal switch - Indicator
- CHECK indicator (Used for indication of check battery)
- Connectors
- INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DIRECT OUT jack: 1/4-inch phone type
TEMPO jack: 1/4-inch phone type
DC IN jack - Power Supply
- Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately) - Current Draw
- 70Â mA
- Expected battery life under continuous use
- Alkaline: Approx. 5 hours
*These figures will vary depending on the actual conditions of use. - Accessories
- Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
Alkaline battery (9 V, 6LR61) - Options (sold separately)
- AC adaptor: PSA series
Footswitch: FS-5U, FS-6, FS-7 - SIZE AND WEIGHT
- Width
- 73 mm
2-7/8 inches - Depth
- 129 mm
5-1/8 inches - Height
- 59 mm
2-3/8 inches - Weight (including battery)
- 420 g
15 oz
