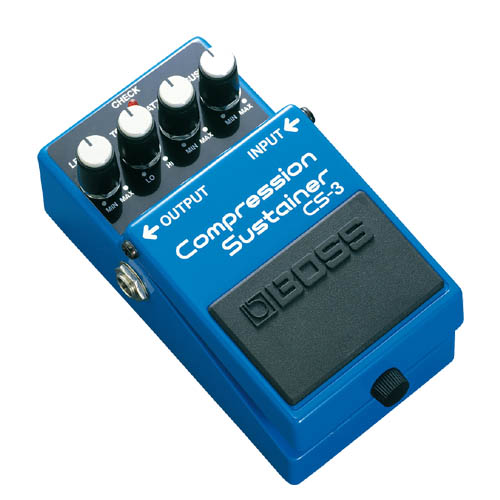

Boss CS3 Compression Sustainer

Description

• Compact compression/sustainer pedal with high-quality circuitry
• Compresses loud signals and boosts softer signals for a smooth overall sound
• Onboard Level, Tone, Attack and Sustain controls for precise tonal shaping
• Low-noise design for super-quiet operation
• BOSS five-year warranty

Nominal Input Level-20 dBu

Input Impedance1 M ohm

Nominal Output Level-20 dBu

Output Impedance1 k ohm

Recommended Load Impedance10 k ohms or greater

BypassBuffered bypass

ControlsSUSTAIN knob
ATTACK knob
TONE knob
LEVEL knob
Pedal switchIndicatorCHECK indicator (Serves also as battery check indicator)ConnectorsINPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jackPower SupplyCarbon-zinc battery (9V, 6F22)
Alkaline battery (9V, 6LR61)
AC adaptor (PSA series: sold separately)Current Draw11 mAExpected battery life under continuous useCarbon: Approx. 14.5 hours
Alkaline: Approx. 34.5 hours
*These figures will vary depending on the actual conditions of use.AccessoriesOwner’s manual
Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
Dry battery/9 V type (6F22)Options (sold separately)AC adaptor: PSA seriesSIZE AND WEIGHTWidth73 mm
2-7/8 inchesDepth129 mm
5-1/8 inchesHeight59 mm
2-3/8 inchesWeight390 g
14 oz* 0 dBu = 0.775 Vrms
