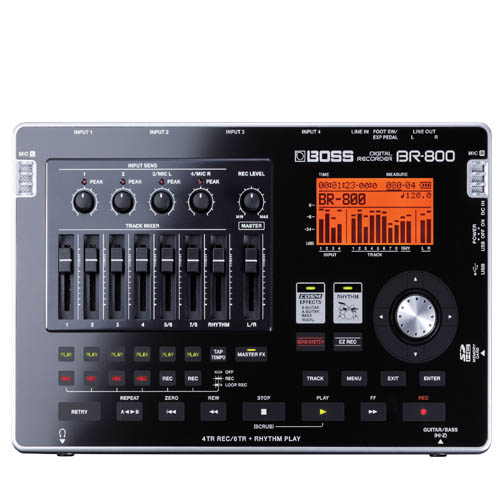

Boss BR800 Digital Recorder

Description

• 4-track simultaneous recording, 8-track simultaneous playback plus dedicated stereo rhythm track playback
• EZ Recording interactively guides through the recording process
• Powerful guitar, bass, and vocal effects derived from BOSS’s flagship processors
• Song Sketch recording for quick stereo capture in WAV format
• Built-in advanced drum machine with editor software
• Functions as a USB audio interface and DAW control surface
• Built-in stereo condenser microphone for instant recording
• Sleek new interface based on touch sensors
• SD included (supports up to 32GB SDHC card)
• Runs on six AA batteries/USB bus power/AC adaptor (included)

Number of TracksTrack: 8
Simultaneously recording track: 4
V-Track: 64 (8 V-Tracks per each Track)Sample Rate44.1 kHzFrequency Response20 Hz to 20 kHz (+1/-3 dB)AD Conversion24-bit
24-bit + AF method (GUITAR/BASS input)

*AF (Adaptive Focus) method is a proprietary method from Roland that vastly improves the signal-to-noise (S/N) ratio of the A/D and D/A converters.DA Conversion24-bitCompatible Card CapacitySD Card: 1 GB to 2 GB
SDHC Card: 4 GB to 32 GBData TypeHiFi (MT2) Roland/BOSS original format
16 bit linear stereo WAV format(*)
*SONG SKETCH onlyRecording Time
(for multi-track recording)*Conversion in one track
1 GB: 8 hours 40 minutes
2 GB: 17 hours
4 GB: 34 hours
8 GB: 68 hours
16 GB: 136 hours
32 GB: 272 hours
* The above-listed recording times are approximate. Times may be slightly shorter depending on the number of songs that were created.
* The above number is the total for all the tracks that are used. If each of the eight tracks contain an equal amount of data, the length of the resulting song will be approximately 1/8 of the above.Recording Time
(for SONG SKETCH)*Stereo recording
1 GB: 90 minutes
2 GB: 3 hours
4 GB: 6 hours
8 GB: 12 hours
16 GB: 24 hours
32 GB: 48 hoursNominal Input LevelGUITAR/BASS jack: -10 dBu
INPUT 1 to 4 jacks: -50 to -20 dBu (XLR type), -26 to +4 dBu (1/4″ TRS phone type)
LINE IN jack: -10 dBuInput ImpedanceGUITAR/BASS jack: 1 M ohm
INPUT 1 to 4 jacks: 3k ohms (XLR type), 47 k ohms (1/4″ TRS phone type)
LINE IN jack: 10 k ohmsNominal Output LevelLINE OUT jacks: -10 dBuOutput ImpedanceLINE OUT jacks: 1 k ohmRecommended Load ImpedanceLINE OUT jacks: 20 k ohms or greater
PHONES jack: 32 to 100 ohmsResidual Noise LevelLINE OUT jacks:-85 dBu or less (IHF-A Typ.)Display128 x 64 dots (Backlit LCD)ConnectorsGUITAR/BASS jack (1/4″ phone type), INPUT 1 to 4 jacks (XLR type / 1/4″ TRS phone type), LINE IN jack (Stereo miniature phone type), FOOT SW/EXP PEDAL (1/4″ TRS phone type), LINE OUT jacks (RCA phono type), PHONES jack (Stereo 1/4″ phone type), USB connector, DC IN jackUSB FunctionAudio Input/Output, MIDI Input/Output, File Transfer, BUS Power operationPower SupplyDC 9V: AC Adaptor
Size AA Dry battery x 6 (alkaline batteries recommended)
USB Bus PowerCurrent Draw280 mA (DC IN)
480 mA (USB Bus Power)Battery Life for Continuous UseApproximately 5.5 hours
(Alkaline dry batteries, with continuous playback of 8 tracks, phantom power off)
* May vary according to usage conditions, phantom power used, batteries used, and type of SD card used.AccessoriesSD Card, AC Adaptor, USB Cable, Owner’s ManualOptionsFootswitch: FS-5U, Pedal Switch: DP-2 (Roland), Expression Pedal: EV-5 (Roland), FV-500L/FV-500HSIZE AND WEIGHTWidth289 mm
11-7/16 inchesDepth184 mm
7-1/4 inchesHeight58 mm
2-5/16 inchesWeight890 g
2 lbs.
