Description

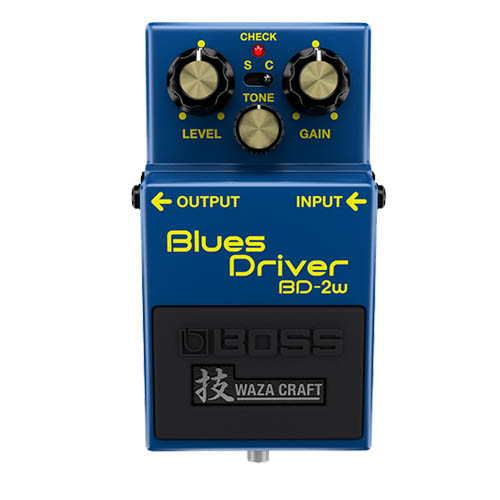

- Special edition Waza Craft pedal delivers the ultimate BOSS tone experience
- Premium sound based on the classic BD-2 Blues Driver
- Newly revised, all-analog discrete amplifier circuit
- Standard and Custom sound modes
- Highly responsive to picking dynamics and volume changes
- BOSS five-year warranty
SPECIFICATIONS Nominal Input Level-20 dBuInput Impedance1 M ohm Nominal Output Level-20 dBu Output Impedance1 k ohm Recommended Load Impedance 10 k ohms or greater Controls Pedal switch
Mode switch
LEVEL knob
TONE knob
GAIN knobIndicatorCHECK indicator (Serves also as battery check indicator)ConnectorsINPUT jack
OUTPUT jack
DC IN jackPower SupplyAlkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
AC adaptor (sold separately)Current Draw18 mAAccessoriesOwner’s Manual
Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTE,” and “Information”)
Carbon-zinc battery (9 V, 6F22)Option (sold separately)AC adaptor (PSA series)SIZE AND WEIGHTWidth73 mm
2-7/8 inchesDepth129 mm
5-1/8 inchesHeight59 mm
2-3/8 inchesWeight430 g
0 lbs. 16 oz.* 0 dBu = 0.775 Vrms
