Description

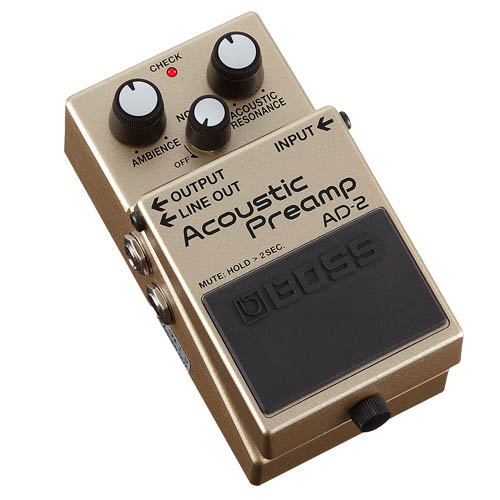

- Acoustic-electric guitar preamp with advanced BOSS sound processing
- Sophisticated under-the-hood processing with multiple interlocked parameters, accessible with simple stompbox controls
- Acoustic Resonance reproduces the complex resonance characteristics of an unplugged acoustic
- Ambience knob provides wide-ranging, studio-quality reverb optimized for acoustic guitar
- Notch filter for instant feedback reduction
- Normal output for an acoustic guitar amp and balanced DI output for direct PA connection
- Sound mute function for switching guitars and tuning on stage
- BOSS five-year warranty
- SPECIFICATIONS
- Nominal Input Level
- -20 dBu
- Input Impedance
- 10 M ohms
- Nominal Output Level
- OUTPUT jack: -20 dBu
LINE OUT jack: -20 dBu - Output Impedance
- OUTPUT jack: 1 k ohm
LINE OUT jack: 600 ohms - Recommended Load Impedance
- OUTPUT jack: 10 k ohms or greater
LINE OUT jack: 600 ohms or greater - Bypass
- Buffered bypass
- Controls
- Pedal switch
ACOUSTIC RESONANCE knob
AMBIENCE knob
NOTCH knob - Indicator
- CHECK indicator (Serves also as battery check indicator)
- Connectors
- INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
LINE OUT jack: 1/4-inch TRS phone type
DC IN jack - Power Supply
- Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22)
AC adaptor (sold separately) - Current Draw
- 55 mA
- Expected battery life under continuous use
- Alkaline: Approx. 6 hours
* These figures will vary depending on the actual conditions of use. - Accessories
- Owner’s manual
Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
Alkaline battery (9V, 6LR61) - Option (sold separately)
- AC adaptor (PSA series)
- SIZE AND WEIGHT
- Width
- 73 mm
2-7/8 inches - Depth
- 129 mm
5-1/8 inches - Height
- 59 mm
2-3/8 inches - Weight (including battery)
- 450 g
1 lb - * 0 dBu = 0.775 Vrms
