Description
- Professional acoustic amplifier with premium sound and features
- 60–watt bi-amp design with custom-designed 6.5-inch woofer and dome tweeter
- Dual channels with discrete analog input electronics and three-band EQ
- Dedicated guitar channel with Acoustic Resonance to restore natural tone to stage guitars with piezo pickups
- Mic channel with phantom power and ¼-inch/XLR combo input for connecting a vocal/guitar microphone or second instrument source
- Chorus effect on guitar channel, delay/echo effect on mic channel, and independent reverb on both channels
- Harmony function automatically creates smooth and accurate vocal harmonies via real-time key/chord analysis of the guitar input
- Built-in looper for practicing, developing ideas, and enhancing live performances
- Independent anti-feedback controls on each channel
- Dual XLR DI jacks assignable to outputting individual channels (direct or post-effects) or both channels mixed together
- USB output for direct recording to a computer
- Control looper, harmony, and effects with optional footswitches
- SPECIFICATIONS
- Rated Power Output
- 60 W (Woofer: 50 W, Tweeter: 10 W)
- Nominal Input Level
- MIC INPUT: -33 dBu (2.5 k ohms)
GUITAR INPUT: -10 dBu (5 M ohms)
AUX INPUT: -8 dBu (10 k ohms) - Speaker
- 16 cm (6.5 inches) Woofer x 1, 2.5 cm (1 inch) Dome Tweeter x 1

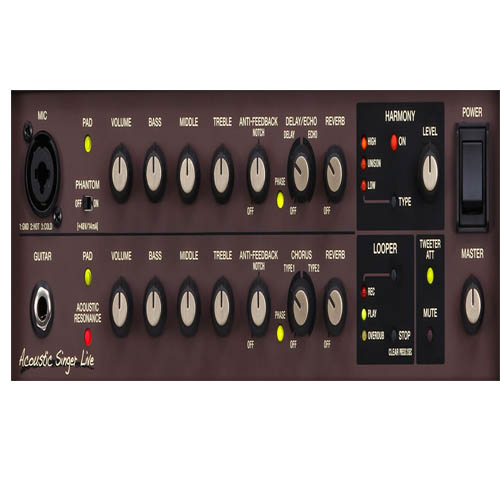

- Controls
- POWER switch
MASTER knob
TWEETER ATT button
MUTE button[MIC]
PAD button
PHANTOM switch
VOLUME knob
BASS knob
MIDDLE knob
TREBLE knob
ANTI-FEEDBACK knob
PHASE button
DELAY/ECHO knob
REVERB knob[GUITAR]
PAD button
ACOUSTIC RESONANCE button
VOLUME knob
BASS knob
MIDDLE knob
TREBLE knob
ANTI-FEEDBACK knob
PHASE button
CHORUS knob
REVERB knob[HARMONY]
ON button
TYPE button
LEVEL knob[LOOPER]
LOOPER button
STOP/CLEAR button[AUX]
LEVEL knob[DI/LINE OUT]
MIC/MIX: OUT SELECT switch
GUITAR/MIX: OUT SELECT switch - Indicators
- TWEETER ATT
MUTE[MIC]
PAD
PHASE[GUITAR]
PAD
ACOUSTIC RESONANCE
PAHSE[HARMONY]
ON
HIGH
UNISON
LOW[LOOPER]
REC
PLAY
OVERDUB - Connectors
- MIC jack: Combo type (XLR, 1/4-inch TRS phone type)
GUITAR jack: 1/4-inch phone type
AUX IN jack: Stereo miniature phone type
PHONES/REC OUT jack: Stereo 1/4-inch phone type
DI/LINE OUT MIC/MIX jack: XLR type
DI/LINE OUT GUITAR/MIX jack: XLR type
FOOT CONTROL LOOPER/CHORUS jack: 1/4-inch TRS phone type
FOOT CONTROL HARMONY/MUTE jack: 1/4-inch TRS phone type
GA-FC jack: 1/4-inch TRS phone type
USB port: USB B type
AC IN jack - Power Consumption
- 40 W
- Accessories
- Owner’s manual
Power cord
GA-FC sticker - Options (sold separately)
- Footswitch: FS-5U, FS-6, FS-7
Expression pedal: FV-500L、FV-500H、Roland EV-5
GA FOOT CONTROLLER: Roland GA-FC - SIZE AND WEIGHT
- Width
- 367 mm
14-1/2 inches - Depth
- 274 mm
10-13/16 inches - Height
- 314 mm
12-3/8 inches - Weight
- 10.5 kg
23 lbs 3 oz - * 0 dBu = 0.775 Vrms
